Bayesian Spatial Panel Models¶

This notebook demonstrates the panel-model classes in bayespecon:

Fixed effects / pooled panel models: OLSPanelFE, SARPanelFE, SEMPanelFE, SDMPanelFE, SDEMPanelFE
Random effects panel models: OLSPanelRE, SARPanelRE, SEMPanelRE

It also demonstrates Bayesian model comparison via WAIC, LOO-CV, and Bayes factors.

Panel Model Equations¶

Let observations be stacked by time, then unit (panel_g convention).

Fixed-effects / pooled classes:

OLS panel: \(y_{it} = x_{it}'\beta + a_i + \tau_t + \epsilon_{it}\)
SAR panel: \(y_{it} = \rho (Wy)_{it} + x_{it}'\beta + a_i + \tau_t + \epsilon_{it}\)
SEM panel: \(y_{it} = x_{it}'\beta + a_i + \tau_t + u_{it},\; u_{it}=\lambda (Wu)_{it}+\epsilon_{it}\)
SDM panel: \(y_{it} = \rho (Wy)_{it} + x_{it}'\beta + (Wx)_{it}'\theta + a_i + \tau_t + \epsilon_{it}\)
SDEM panel: \(y_{it} = x_{it}'\beta + (Wx)_{it}'\theta + a_i + \tau_t + u_{it},\; u_{it}=\lambda (Wu)_{it}+\epsilon_{it}\)

Random-effects classes:

OLS random effects: \(y_{it} = x_{it}'\beta + \alpha_i + \epsilon_{it},\; \alpha_i \sim N(0, \sigma_\alpha^2)\)
SAR random effects: \(y_{it} = \rho (Wy)_{it} + x_{it}'\beta + \alpha_i + \epsilon_{it},\; \alpha_i \sim N(0, \sigma_\alpha^2)\)
SEM random effects: \(y_{it} = x_{it}'\beta + \alpha_i + u_{it},\; u_{it}=\lambda (Wu)_{it}+\epsilon_{it},\; \alpha_i \sim N(0, \sigma_\alpha^2)\)

The model argument selects the pooled or fixed-effects specification for the FE classes:

0 pooled
1 unit FE
2 time FE
3 two-way FE

The RE classes are hierarchical models with unit-level random intercepts, so they internally use the pooled design and estimate sigma_alpha directly.

import arviz as az
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from libpysal.graph import Graph

from bayespecon import (
    OLSPanelFE,
    OLSPanelRE,
    SARPanelFE,
    SARPanelRE,
    SDEMPanelFE,
    SDMPanelFE,
    SEMPanelFE,
    SEMPanelRE,
    dgp,
)

az.style.use("arviz-white")

Build a Balanced Panel Dataset¶

For pedagogy, we generate synthetic panel data from the bayespecon.dgp module on a regular polygon grid and then assemble a formula-ready DataFrame.

# Generate base geometry via cross-sectional DGP, then simulate panel data via panel DGP.
rng = np.random.default_rng(2026)
xcols = ["poverty", "rev_rating", "num_spots", "crowded"]
ycol = "price_pp"

base_gdf = dgp.simulate_sar(n=8, seed=2026, create_gdf=True, geometry_type="polygon")
W = Graph.build_contiguity(base_gdf, rook=False).transform("r")
N = len(base_gdf)
T = 4
beta = np.array([1.5, -0.8, 0.6, 0.4, -0.5], dtype=float)

panel_sim = dgp.simulate_panel_sar_fe(
    N=N,
    T=T,
    rho=0.35,
    beta=beta,
    sigma=1.0,
    sigma_alpha=0.5,
    rng=rng,
    W=W,
)

panel = pd.DataFrame(
    {
        "unit": panel_sim["unit"],
        "time": panel_sim["time"],
        ycol: panel_sim["y"],
    }
)
for j, name in enumerate(xcols, start=1):
    panel[name] = panel_sim["X"][:, j]

Shared Helpers¶

def fit_panel_model(
    model_cls, formula, data, W, model=3, draws=300, tune=300, chains=2, seed=42
):
    """Fit a panel model and return (model, summary, effects_df).

    Uses minimal MCMC settings for pedagogical demonstration.
    Increase draws/tune for real analyses.
    """
    m = model_cls(
        formula=formula,
        data=data,
        W=W,
        unit_col="unit",
        time_col="time",
        model=model,
        logdet_method="eigenvalue",
    )
    m.fit(
        draws=draws,
        tune=tune,
        chains=chains,
        target_accept=0.9,
        random_seed=seed,
        progressbar=False,
        idata_kwargs={"log_likelihood": True},
    )
    summary = m.summary(round_to=3)
    effects_df = pd.DataFrame(m.spatial_effects())
    return m, summary, effects_df


def diagnostics_table(idata, var_names):
    """Show key MCMC diagnostics for the given parameters."""
    cols = ["mean", "sd", "ess_bulk", "ess_tail", "r_hat"]
    return az.summary(idata, var_names=var_names, round_to=3)[cols]


def show_trace(idata, var_names, title):
    """Plot trace plots for the given parameters."""
    az.plot_trace(idata, var_names=var_names)
    plt.suptitle(title, y=1.02)
    plt.tight_layout()
    plt.show()

Fit: OLSPanelFE¶

formula = "price_pp ~ poverty + rev_rating + num_spots + crowded"
ols_panel, summary_ols, effects_ols = fit_panel_model(
    OLSPanelFE, formula, panel, W, model=3
)
display(summary_ols)
display(effects_ols)
display(diagnostics_table(ols_panel.inference_data, ["beta", "sigma"]))

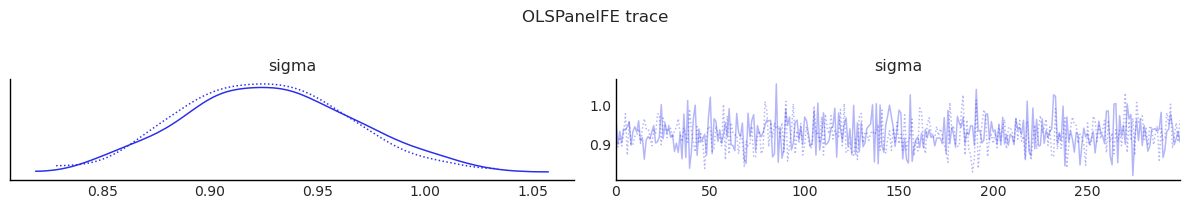

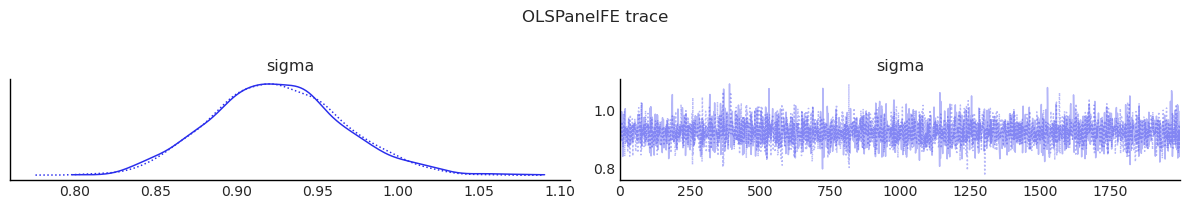

show_trace(ols_panel.inference_data, ["sigma"], "OLSPanelFE trace")

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [beta, sigma]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 5 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	-17938.848	926300.112	-1696137.603	1732990.761	33595.169	33667.859	762.902	527.027	1.007
poverty	-0.782	0.063	-0.896	-0.655	0.002	0.002	912.719	487.536	0.999
rev_rating	0.620	0.067	0.501	0.759	0.002	0.003	830.066	437.377	1.001
num_spots	0.392	0.079	0.249	0.531	0.003	0.003	817.795	482.493	0.997
crowded	-0.484	0.065	-0.610	-0.367	0.003	0.002	679.134	445.403	1.000
sigma	0.924	0.043	0.853	1.005	0.001	0.002	944.424	469.213	0.999

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.781999	-0.904705	-0.654624	0.0	0.0	0.0	0.0	0.0	-0.781999	-0.904705	-0.654624	0.0
rev_rating	0.619708	0.486484	0.755268	0.0	0.0	0.0	0.0	0.0	0.619708	0.486484	0.755268	0.0
num_spots	0.391925	0.245167	0.541430	0.0	0.0	0.0	0.0	0.0	0.391925	0.245167	0.541430	0.0
crowded	-0.484415	-0.609632	-0.358080	0.0	0.0	0.0	0.0	0.0	-0.484415	-0.609632	-0.358080	0.0

	mean	sd	ess_bulk	ess_tail	r_hat
beta[Intercept]	-17938.848	926300.112	762.902	527.027	1.007
beta[poverty]	-0.782	0.063	912.719	487.536	0.999
beta[rev_rating]	0.620	0.067	830.066	437.377	1.001
beta[num_spots]	0.392	0.079	817.795	482.493	0.997
beta[crowded]	-0.484	0.065	679.134	445.403	1.000
sigma	0.924	0.043	944.424	469.213	0.999

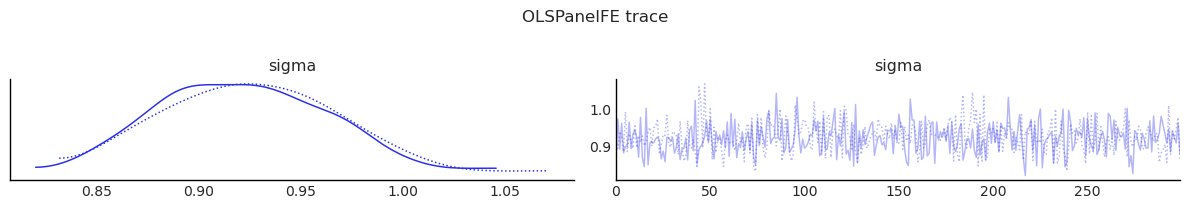

../_images/4ea49618313a55aa0c90a0509a7e4e985efdc84536c1c404d499927ee00586c1.png

Fit: SARPanelFE¶

sar_panel, summary_sar, effects_sar = fit_panel_model(
    SARPanelFE, formula, panel, W, model=3
)
display(summary_sar)
display(effects_sar)
display(diagnostics_table(sar_panel.inference_data, ["rho", "beta", "sigma"]))

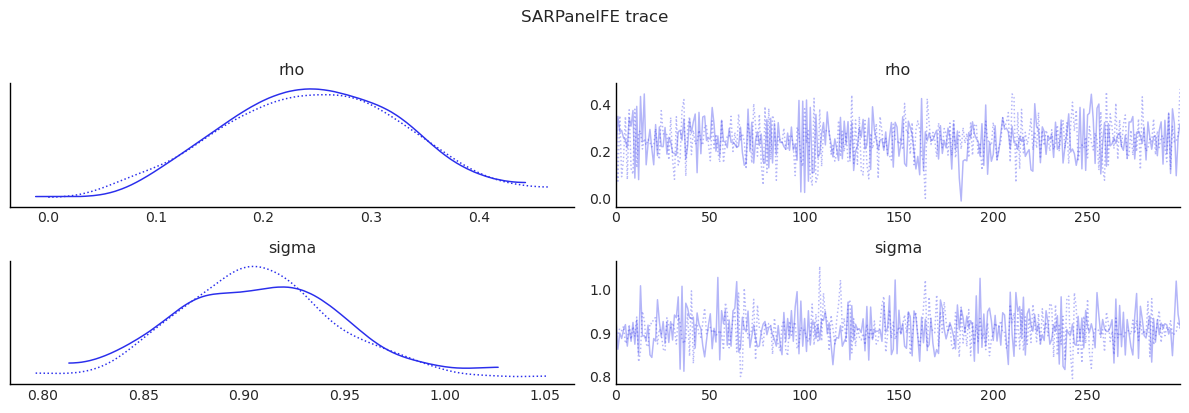

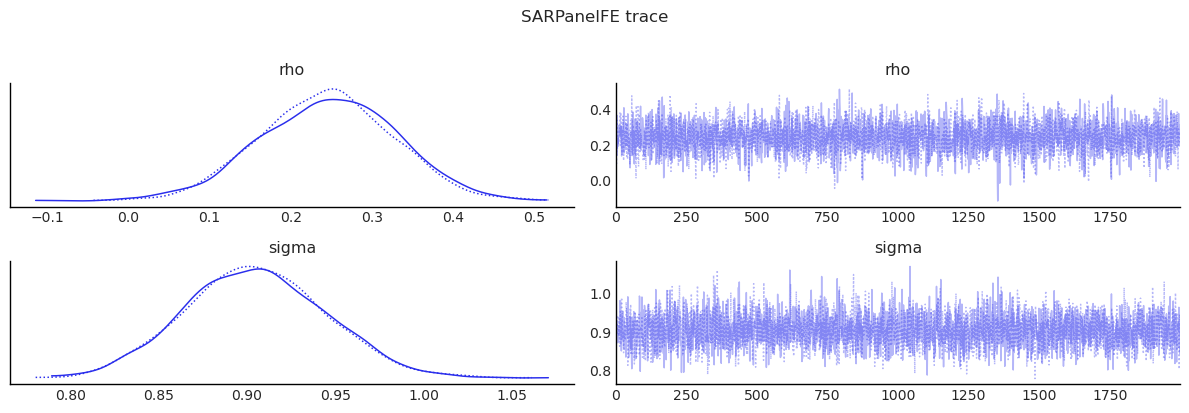

show_trace(sar_panel.inference_data, ["rho", "sigma"], "SARPanelFE trace")

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [rho, beta, sigma]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 5 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	-7523.979	992361.836	-2097730.467	1758795.614	32039.615	45066.998	962.241	369.441	1.008
poverty	-0.784	0.063	-0.905	-0.674	0.002	0.002	952.220	457.932	1.001
rev_rating	0.620	0.068	0.501	0.748	0.002	0.002	1098.712	529.286	0.998
num_spots	0.376	0.078	0.248	0.532	0.002	0.003	1086.159	522.337	0.997
crowded	-0.497	0.059	-0.599	-0.384	0.002	0.002	948.160	539.865	1.000
rho	0.247	0.079	0.089	0.382	0.002	0.003	1109.673	386.768	1.000
sigma	0.905	0.039	0.830	0.977	0.001	0.002	1073.689	498.609	1.003

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.793988	-0.918759	-0.675208	0.0	-0.259279	-0.494637	-0.073006	0.003333	-1.053267	-1.347461	-0.804549	0.0
rev_rating	0.627874	0.492226	0.756036	0.0	0.205394	0.057567	0.396422	0.003333	0.833268	0.597306	1.122249	0.0
num_spots	0.380562	0.229926	0.536363	0.0	0.123320	0.031742	0.244520	0.003333	0.503882	0.290485	0.749359	0.0
crowded	-0.503408	-0.625725	-0.395580	0.0	-0.164919	-0.319672	-0.041843	0.003333	-0.668327	-0.894285	-0.469148	0.0

	mean	sd	ess_bulk	ess_tail	r_hat
rho	0.247	0.079	1109.673	386.768	1.000
beta[Intercept]	-7523.979	992361.836	962.241	369.441	1.008
beta[poverty]	-0.784	0.063	952.220	457.932	1.001
beta[rev_rating]	0.620	0.068	1098.712	529.286	0.998
beta[num_spots]	0.376	0.078	1086.159	522.337	0.997
beta[crowded]	-0.497	0.059	948.160	539.865	1.000
sigma	0.905	0.039	1073.689	498.609	1.003

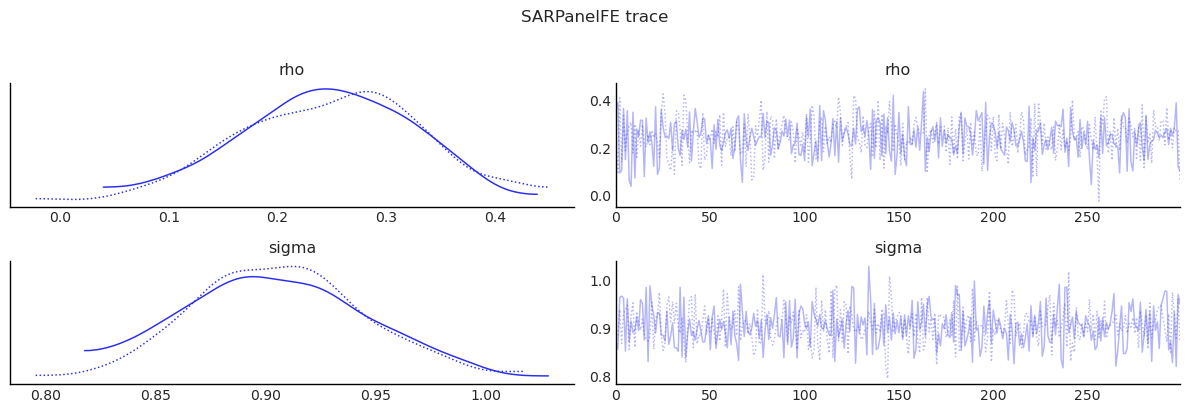

../_images/f63d79c1937adc4b85fdc6005722c1d335dccb6c57436973b8b6a0503da12e06.png

Fit: SEMPanelFE¶

sem_panel, summary_sem, effects_sem = fit_panel_model(
    SEMPanelFE, formula, panel, W, model=3
)
display(summary_sem)
display(effects_sem)
display(diagnostics_table(sem_panel.inference_data, ["lam", "beta", "sigma"]))

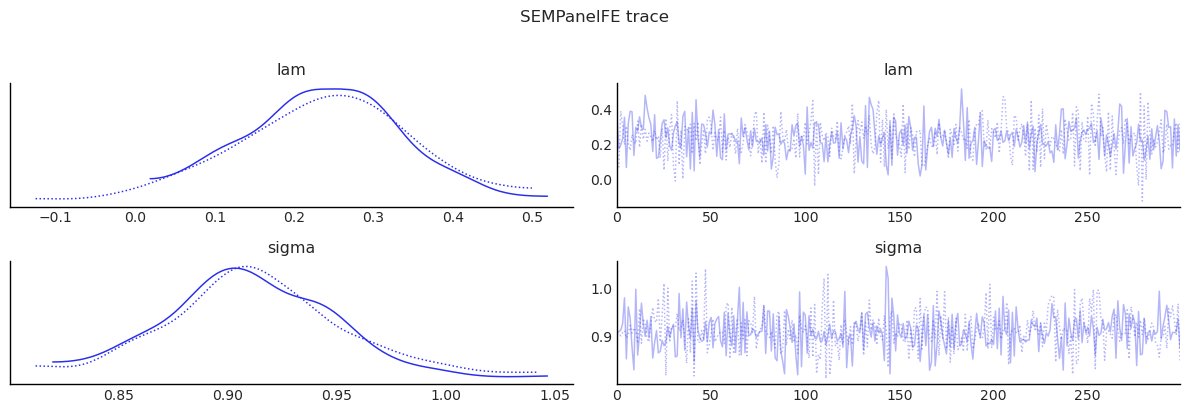

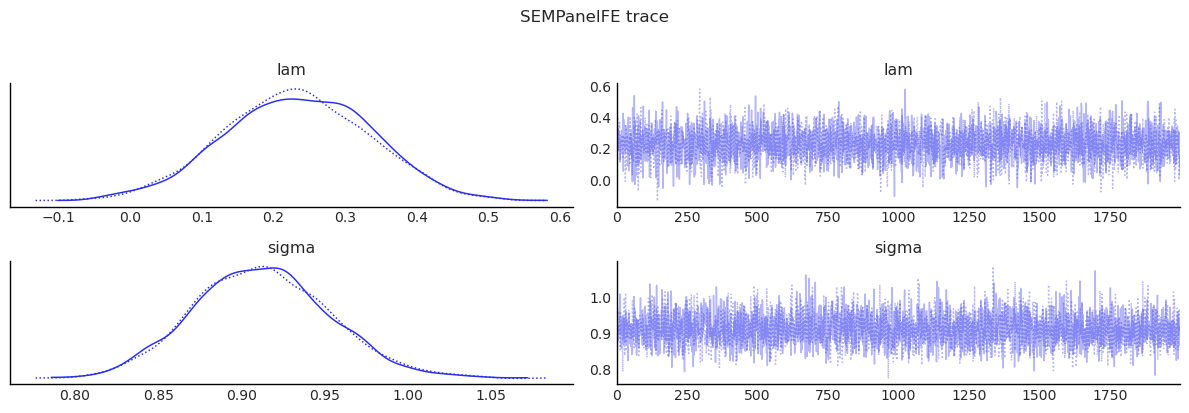

show_trace(sem_panel.inference_data, ["lam", "sigma"], "SEMPanelFE trace")

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [lam, beta, sigma]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 5 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	-14267.039	999416.638	-1825959.455	1923500.648	34167.777	41279.721	849.889	473.838	1.000
poverty	-0.774	0.057	-0.876	-0.677	0.002	0.002	1172.276	388.730	0.999
rev_rating	0.599	0.066	0.478	0.725	0.002	0.003	1030.047	412.009	1.003
num_spots	0.360	0.081	0.193	0.504	0.002	0.003	1435.977	362.773	1.000
crowded	-0.495	0.062	-0.616	-0.391	0.002	0.002	998.956	481.011	1.000
lam	0.234	0.102	0.030	0.405	0.003	0.004	988.914	523.364	1.002
sigma	0.910	0.040	0.834	0.982	0.001	0.002	1044.759	433.540	1.000

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.774256	-0.887344	-0.675279	0.0	0.0	0.0	0.0	0.0	-0.774256	-0.887344	-0.675279	0.0
rev_rating	0.599067	0.465079	0.723677	0.0	0.0	0.0	0.0	0.0	0.599067	0.465079	0.723677	0.0
num_spots	0.359547	0.195547	0.521156	0.0	0.0	0.0	0.0	0.0	0.359547	0.195547	0.521156	0.0
crowded	-0.494852	-0.609601	-0.371725	0.0	0.0	0.0	0.0	0.0	-0.494852	-0.609601	-0.371725	0.0

	mean	sd	ess_bulk	ess_tail	r_hat
lam	0.234	0.102	988.914	523.364	1.002
beta[Intercept]	-14267.039	999416.638	849.889	473.838	1.000
beta[poverty]	-0.774	0.057	1172.276	388.730	0.999
beta[rev_rating]	0.599	0.066	1030.047	412.009	1.003
beta[num_spots]	0.360	0.081	1435.977	362.773	1.000
beta[crowded]	-0.495	0.062	998.956	481.011	1.000
sigma	0.910	0.040	1044.759	433.540	1.000

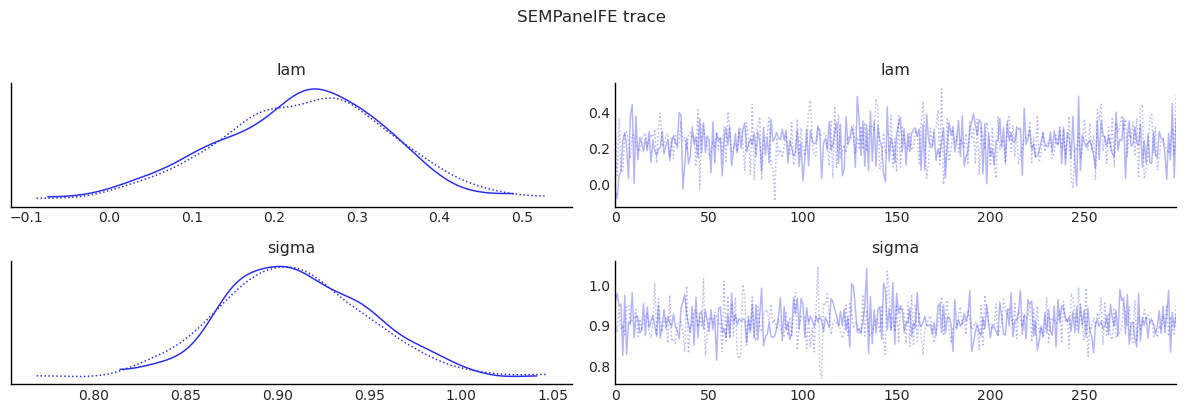

../_images/cde4184ebd9397517aa30ddf0457c6ebdb97ad6253f578c23f51b804c7cd1b92.png

Fit: SDMPanelFE¶

sdm_panel, summary_sdm, effects_sdm = fit_panel_model(
    SDMPanelFE, formula, panel, W, model=3
)
display(summary_sdm)
display(effects_sdm)
display(diagnostics_table(sdm_panel.inference_data, ["rho", "beta", "sigma"]))

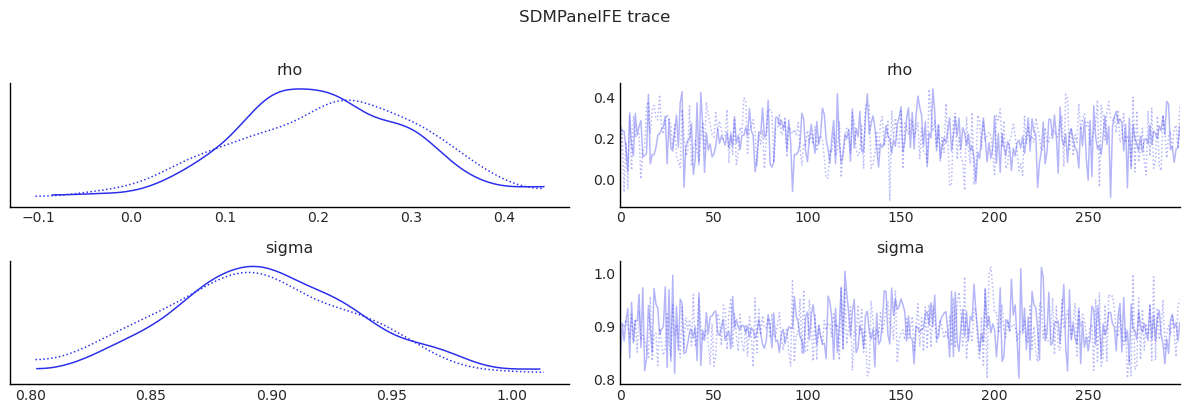

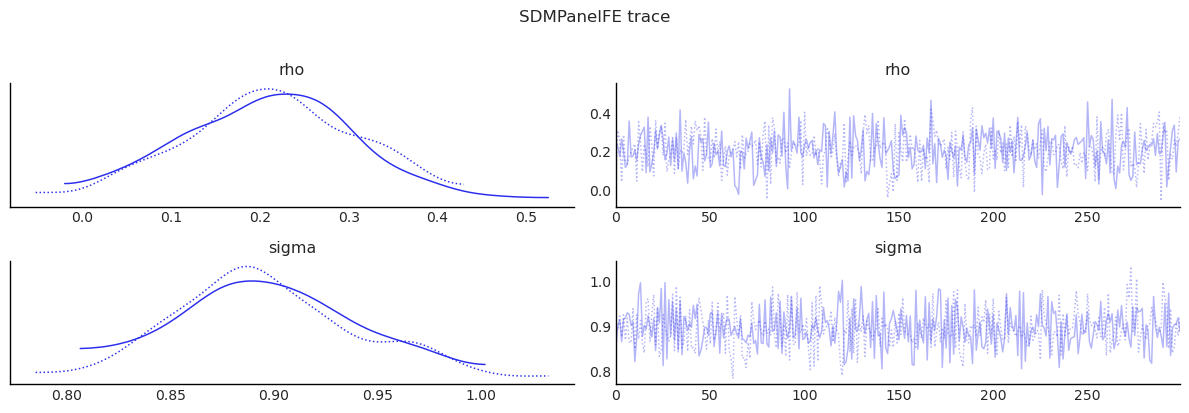

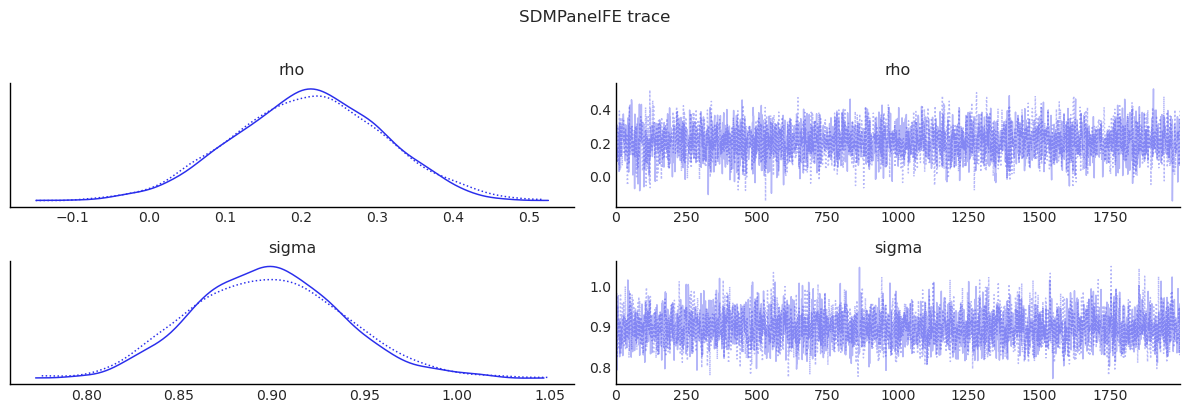

show_trace(sdm_panel.inference_data, ["rho", "sigma"], "SDMPanelFE trace")

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [rho, beta, sigma]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 5 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	-24752.183	982197.524	-1654916.793	1804126.774	36778.036	34422.543	722.319	549.061	0.999
poverty	-0.776	0.063	-0.889	-0.660	0.002	0.002	1023.652	582.222	1.001
rev_rating	0.645	0.071	0.505	0.773	0.002	0.003	813.981	396.745	1.002
num_spots	0.362	0.078	0.214	0.503	0.003	0.003	864.442	395.851	1.010
crowded	-0.487	0.063	-0.598	-0.364	0.002	0.003	1037.770	409.853	1.000
W*poverty	0.047	0.168	-0.291	0.318	0.005	0.006	958.936	542.077	0.998
W*rev_rating	0.265	0.195	-0.064	0.676	0.006	0.007	1251.983	584.302	1.001
W*num_spots	0.425	0.182	0.065	0.738	0.007	0.006	736.548	501.047	1.000
W*crowded	0.216	0.181	-0.114	0.532	0.006	0.007	817.109	452.733	1.011
rho	0.210	0.097	0.026	0.382	0.004	0.003	701.806	528.564	0.999
sigma	0.896	0.043	0.825	0.983	0.001	0.002	946.084	425.984	1.003

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.780322	-0.900699	-0.657682	0.0	-0.143807	-0.516414	0.199634	0.413333	-0.924129	-1.356625	-0.506935	0.00
rev_rating	0.659615	0.510719	0.809888	0.0	0.500142	0.030851	1.013816	0.036667	1.159758	0.630355	1.724315	0.00
num_spots	0.380866	0.227593	0.535018	0.0	0.623865	0.220483	1.079395	0.000000	1.004731	0.551044	1.468786	0.00
crowded	-0.483225	-0.608166	-0.354449	0.0	0.139372	-0.281942	0.585426	0.533333	-0.343852	-0.817538	0.126599	0.17

	mean	sd	ess_bulk	ess_tail	r_hat
rho	0.210	0.097	701.806	528.564	0.999
beta[Intercept]	-24752.183	982197.524	722.319	549.061	0.999
beta[poverty]	-0.776	0.063	1023.652	582.222	1.001
beta[rev_rating]	0.645	0.071	813.981	396.745	1.002
beta[num_spots]	0.362	0.078	864.442	395.851	1.010
beta[crowded]	-0.487	0.063	1037.770	409.853	1.000
beta[W*poverty]	0.047	0.168	958.936	542.077	0.998
beta[W*rev_rating]	0.265	0.195	1251.983	584.302	1.001
beta[W*num_spots]	0.425	0.182	736.548	501.047	1.000
beta[W*crowded]	0.216	0.181	817.109	452.733	1.011
sigma	0.896	0.043	946.084	425.984	1.003

../_images/9dd93685d37b3c82e961b3290278b8224caec4428279eb5f63efad8d7aae4fa6.png

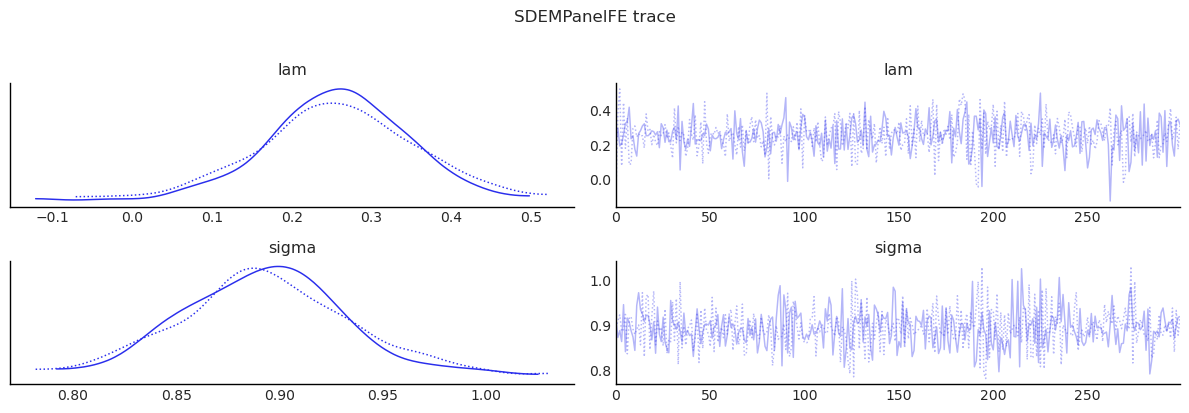

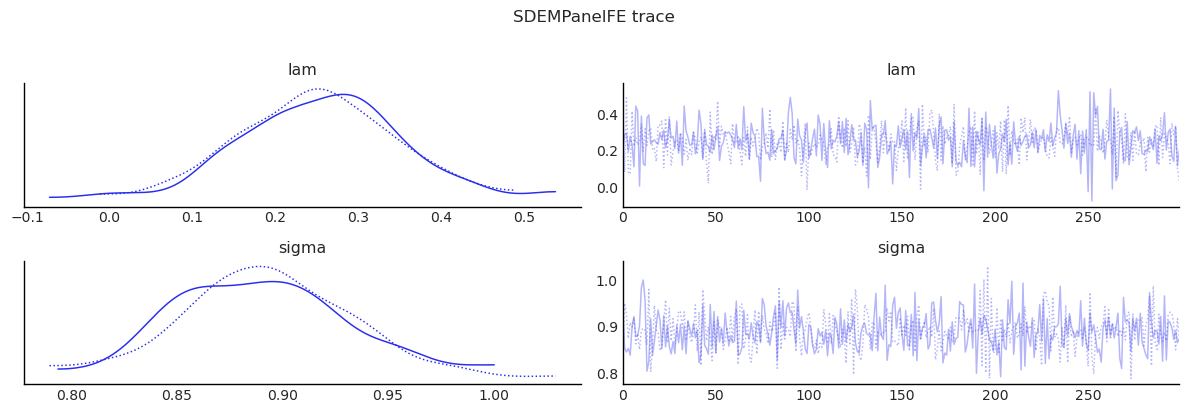

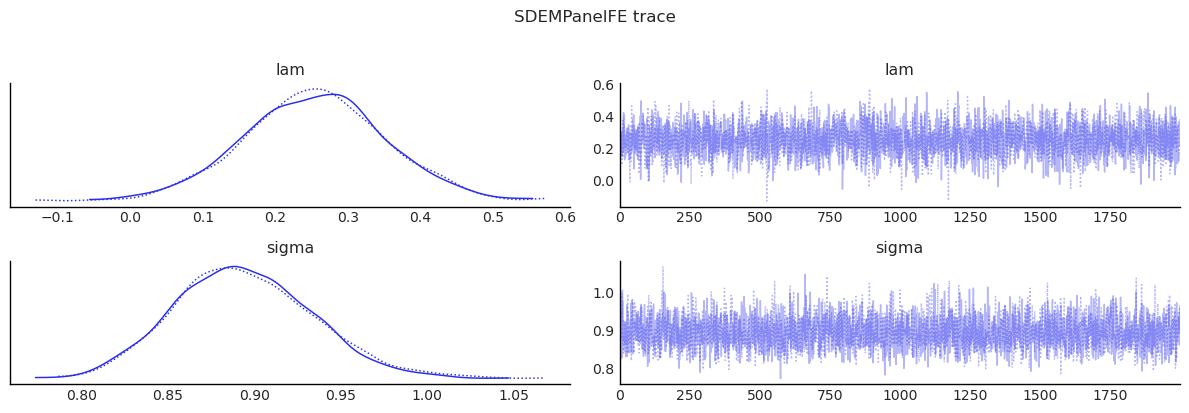

Fit: SDEMPanelFE¶

sdem_panel, summary_sdem, effects_sdem = fit_panel_model(
    SDEMPanelFE, formula, panel, W, model=3
)
display(summary_sdem)
display(effects_sdem)
display(diagnostics_table(sdem_panel.inference_data, ["lam", "beta", "sigma"]))
show_trace(sdem_panel.inference_data, ["lam", "sigma"], "SDEMPanelFE trace")

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [lam, beta, sigma]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 5 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	-62308.781	994398.703	-1888657.675	1808447.433	32961.272	35730.652	913.602	488.787	0.999
poverty	-0.782	0.066	-0.901	-0.668	0.002	0.002	1120.080	612.915	1.006
rev_rating	0.658	0.074	0.517	0.787	0.003	0.002	727.012	514.565	1.000
num_spots	0.385	0.076	0.240	0.530	0.003	0.004	843.411	386.382	1.001
crowded	-0.488	0.069	-0.617	-0.357	0.002	0.003	785.644	466.825	1.001
W*poverty	-0.153	0.159	-0.443	0.140	0.005	0.006	1084.319	527.507	0.999
W*rev_rating	0.439	0.212	0.039	0.825	0.009	0.008	575.717	538.630	1.001
W*num_spots	0.604	0.221	0.206	1.006	0.008	0.008	806.898	488.761	0.999
W*crowded	0.113	0.189	-0.276	0.443	0.006	0.006	849.394	481.011	1.004
lam	0.253	0.097	0.084	0.449	0.003	0.005	1325.447	437.607	1.002
sigma	0.891	0.040	0.816	0.966	0.001	0.002	1022.757	531.812	0.999

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.782128	-0.902605	-0.656286	0.0	-0.153335	-0.486446	0.127443	0.343333	-0.935463	-1.312488	-0.596659	0.00
rev_rating	0.657944	0.525386	0.808370	0.0	0.438747	0.044381	0.877121	0.026667	1.096691	0.626058	1.621940	0.00
num_spots	0.384577	0.232888	0.537989	0.0	0.603960	0.189739	1.010107	0.006667	0.988537	0.514463	1.459270	0.00
crowded	-0.488016	-0.622812	-0.351537	0.0	0.113423	-0.273240	0.478564	0.530000	-0.374593	-0.829240	0.091980	0.09

	mean	sd	ess_bulk	ess_tail	r_hat
lam	0.253	0.097	1325.447	437.607	1.002
beta[Intercept]	-62308.781	994398.703	913.602	488.787	0.999
beta[poverty]	-0.782	0.066	1120.080	612.915	1.006
beta[rev_rating]	0.658	0.074	727.012	514.565	1.000
beta[num_spots]	0.385	0.076	843.411	386.382	1.001
beta[crowded]	-0.488	0.069	785.644	466.825	1.001
beta[W*poverty]	-0.153	0.159	1084.319	527.507	0.999
beta[W*rev_rating]	0.439	0.212	575.717	538.630	1.001
beta[W*num_spots]	0.604	0.221	806.898	488.761	0.999
beta[W*crowded]	0.113	0.189	849.394	481.011	1.004
sigma	0.891	0.040	1022.757	531.812	0.999

../_images/d3c41aa21a231a4be9a22bb1a6601daff79b87cfae50064893a0e90b2f4ad80d.png

MCMC adequacy for the spatial parameter¶

Panel SAR/SDEM models inherit the slow-mixing behaviour of \(\rho\) (or \(\lambda\)) documented by Wolf, Anselin & Arribas-Bel (2018) [Wolf et al., 2018]. The spatial_mcmc_diagnostic helper checks ESS, sampler yield, \(\hat{R}\), and HPDI stability for the spatial scalar.

from bayespecon import spatial_mcmc_diagnostic

spatial_mcmc_diagnostic(sdm_panel, emit_warnings=False).to_frame()

	ess_bulk	ess_tail	r_hat	mcse_mean	yield_pct	hpdi_drift_pct	adequate
parameter
rho	701.806415	528.564363	0.998564	0.003705	116.967736	0.452301	False

Random-Effects Panel Models¶

The random-effects models replace deterministic unit fixed effects with latent unit intercepts \(\alpha_i \sim N(0, \sigma_\alpha^2)\). That lets the notebook estimate the variance of unit heterogeneity directly and compare FE and RE behavior on the same synthetic balanced panel.

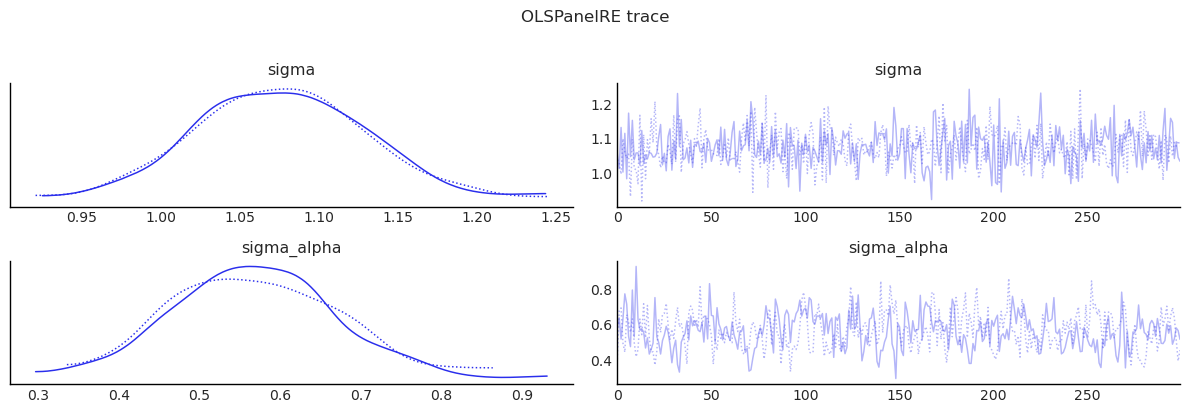

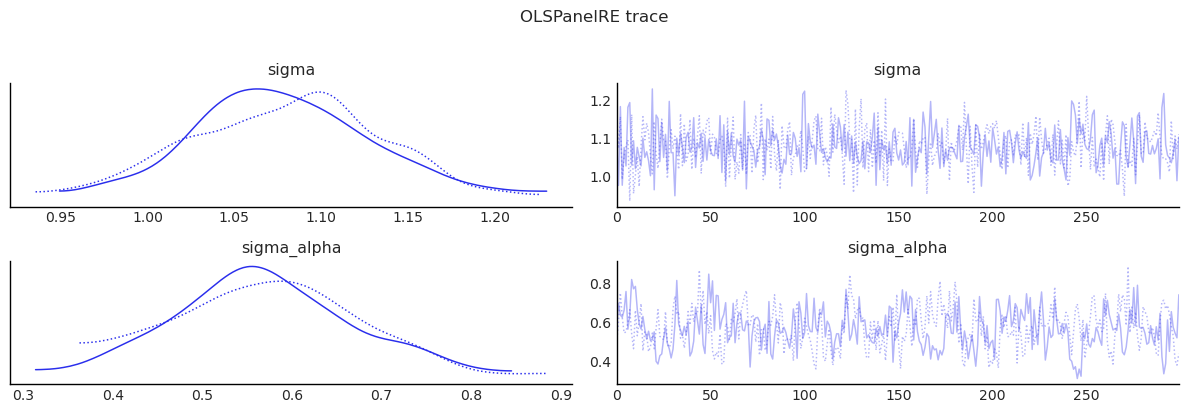

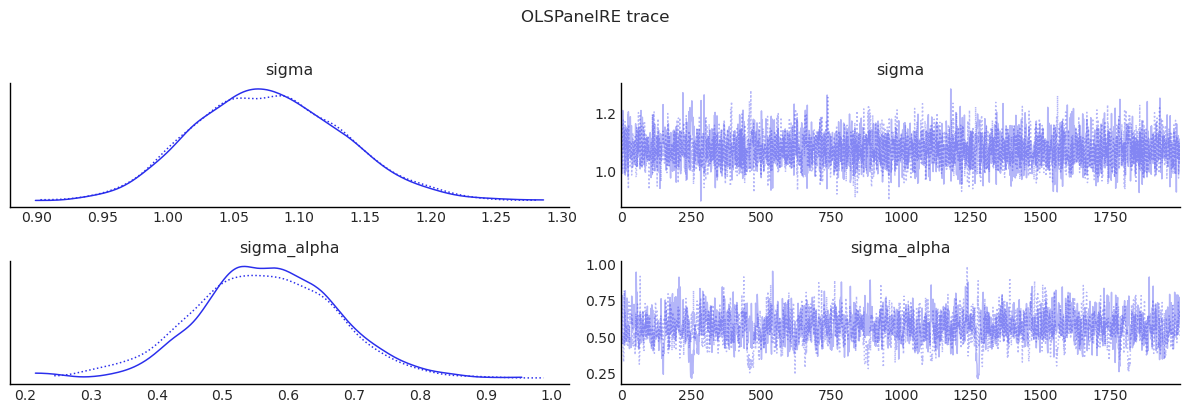

Fit: OLSPanelRE¶

ols_panel_re, summary_ols_re, effects_ols_re = fit_panel_model(
    OLSPanelRE, formula, panel, W, model=0
)
display(summary_ols_re)
display(effects_ols_re)
display(
    diagnostics_table(ols_panel_re.inference_data, ["beta", "sigma", "sigma_alpha"])
)
show_trace(ols_panel_re.inference_data, ["sigma", "sigma_alpha"], "OLSPanelRE trace")

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [beta, sigma, sigma_alpha, alpha]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 5 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details
The effective sample size per chain is smaller than 100 for some parameters.  A higher number is needed for reliable rhat and ess computation. See https://arxiv.org/abs/1903.08008 for details
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	2.316	0.098	2.139	2.495	0.004	0.003	527.418	426.632	1.007
poverty	-0.824	0.070	-0.946	-0.682	0.002	0.003	928.816	395.270	1.003
rev_rating	0.640	0.079	0.479	0.773	0.002	0.004	1550.899	348.810	1.000
num_spots	0.422	0.084	0.277	0.598	0.003	0.004	887.929	405.400	1.003
crowded	-0.467	0.068	-0.583	-0.337	0.002	0.002	1092.684	528.638	1.002
...	...	...	...	...	...	...	...	...	...
alpha[61]	-0.412	0.413	-1.166	0.330	0.010	0.016	1666.891	553.033	1.000
alpha[62]	-0.474	0.399	-1.182	0.308	0.013	0.017	937.485	421.681	1.007
alpha[63]	-0.083	0.378	-0.805	0.566	0.011	0.015	1287.055	514.661	1.009
sigma	1.079	0.054	0.972	1.169	0.002	0.002	721.117	484.639	1.003
sigma_alpha	0.571	0.101	0.387	0.757	0.007	0.003	183.612	272.620	1.001

71 rows × 9 columns

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.824451	-0.960888	-0.686160	0.0	0.0	0.0	0.0	0.0	-0.824451	-0.960888	-0.686160	0.0
rev_rating	0.640127	0.488938	0.797677	0.0	0.0	0.0	0.0	0.0	0.640127	0.488938	0.797677	0.0
num_spots	0.422231	0.255925	0.592860	0.0	0.0	0.0	0.0	0.0	0.422231	0.255925	0.592860	0.0
crowded	-0.467156	-0.587586	-0.328555	0.0	0.0	0.0	0.0	0.0	-0.467156	-0.587586	-0.328555	0.0

	mean	sd	ess_bulk	ess_tail	r_hat
beta[Intercept]	2.316	0.098	527.418	426.632	1.007
beta[poverty]	-0.824	0.070	928.816	395.270	1.003
beta[rev_rating]	0.640	0.079	1550.899	348.810	1.000
beta[num_spots]	0.422	0.084	887.929	405.400	1.003
beta[crowded]	-0.467	0.068	1092.684	528.638	1.002
sigma	1.079	0.054	721.117	484.639	1.003
sigma_alpha	0.571	0.101	183.612	272.620	1.001

../_images/cf7463bdd3dd68f5f452cd6df999922e38ab3dac5ce02c4f6f575cddea665ca9.png

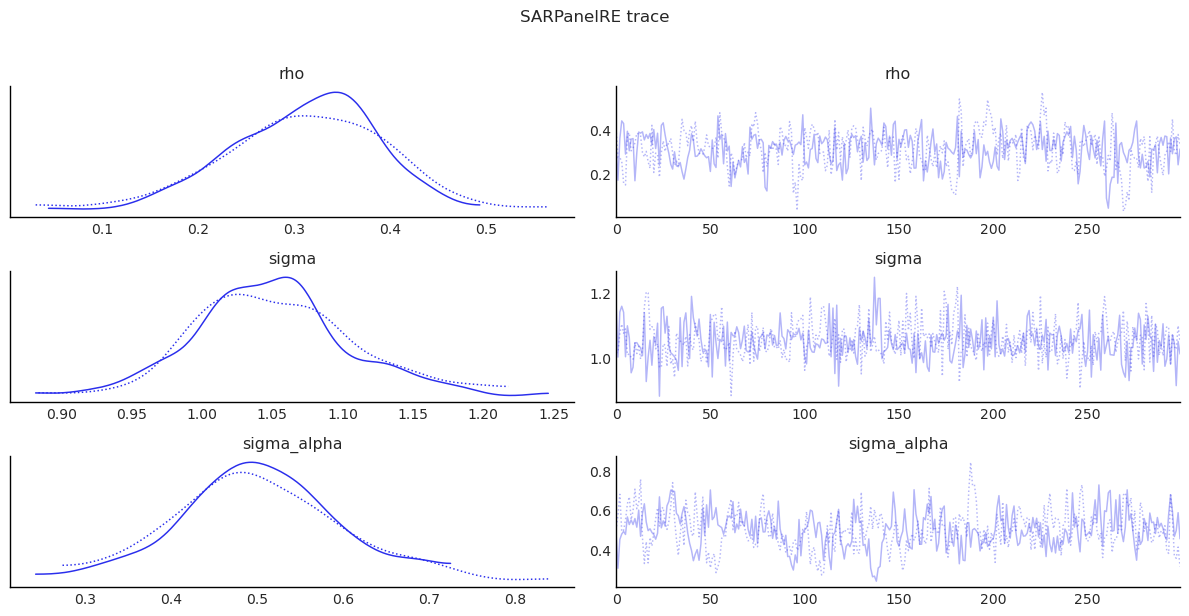

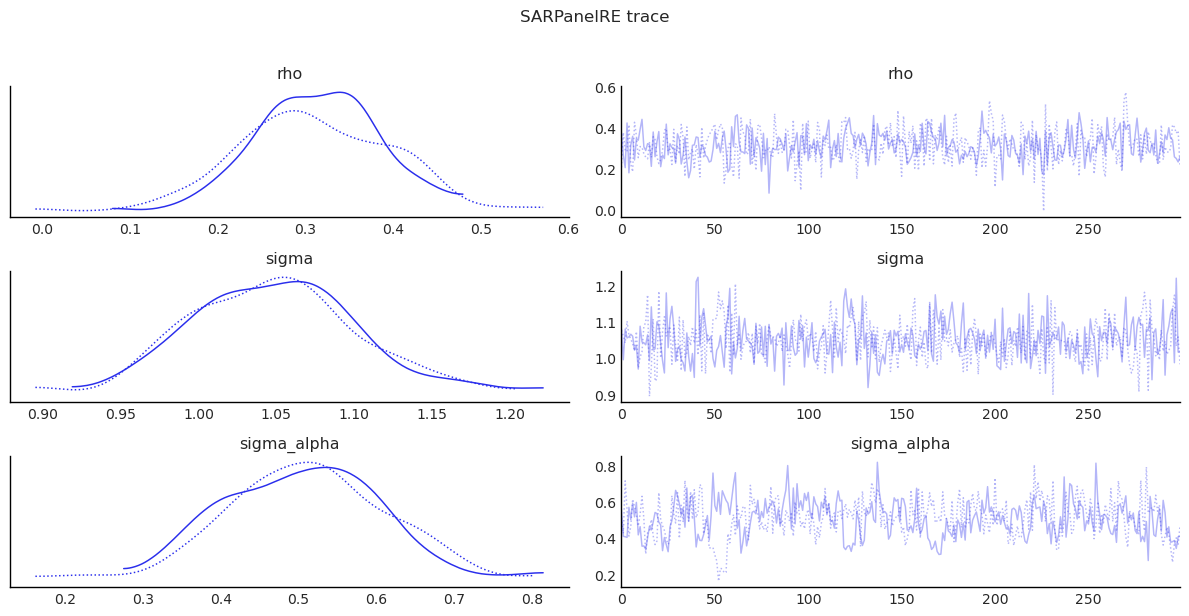

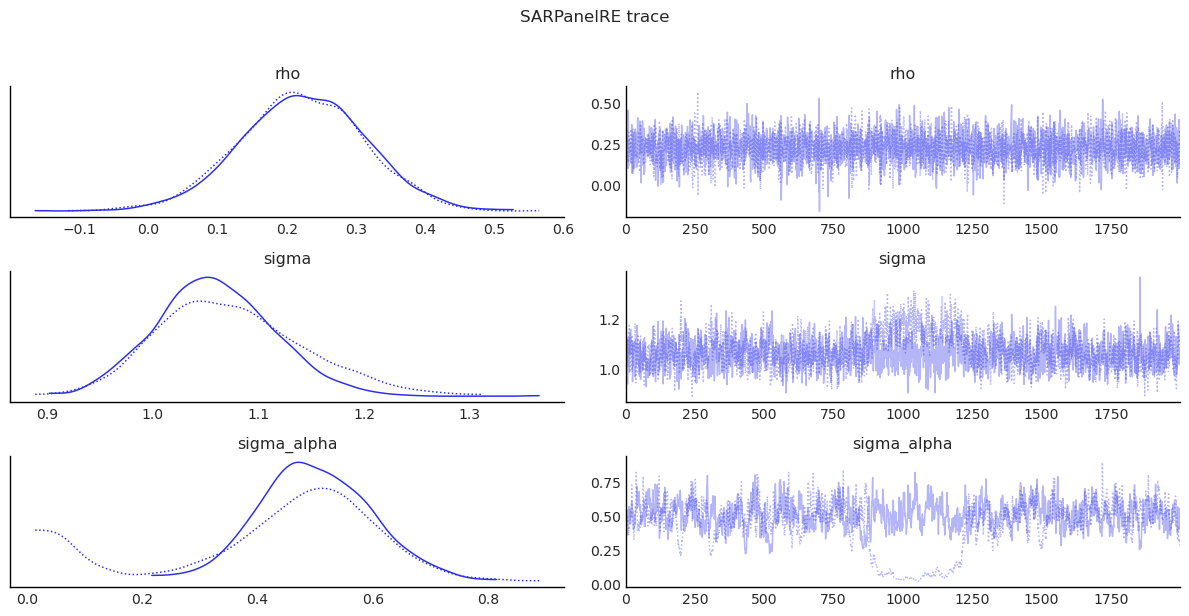

Fit: SARPanelRE¶

sar_panel_re, summary_sar_re, effects_sar_re = fit_panel_model(
    SARPanelRE, formula, panel, W, model=0
)
display(summary_sar_re)
display(effects_sar_re)
display(
    diagnostics_table(
        sar_panel_re.inference_data, ["rho", "beta", "sigma", "sigma_alpha"]
    )
)
show_trace(
    sar_panel_re.inference_data, ["rho", "sigma", "sigma_alpha"], "SARPanelRE trace"
)

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [rho, beta, sigma, sigma_alpha, alpha]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 6 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details
The effective sample size per chain is smaller than 100 for some parameters.  A higher number is needed for reliable rhat and ess computation. See https://arxiv.org/abs/1903.08008 for details
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	1.561	0.201	1.204	1.925	0.009	0.007	549.789	423.633	1.010
poverty	-0.826	0.070	-0.957	-0.697	0.002	0.003	1036.648	407.204	1.000
rev_rating	0.640	0.070	0.491	0.750	0.002	0.003	1354.377	437.158	1.004
num_spots	0.389	0.083	0.240	0.539	0.003	0.003	921.499	415.933	1.005
crowded	-0.477	0.062	-0.602	-0.357	0.002	0.002	894.167	486.736	1.000
...	...	...	...	...	...	...	...	...	...
alpha[62]	-0.460	0.375	-1.218	0.172	0.014	0.014	702.846	437.556	1.004
alpha[63]	-0.052	0.344	-0.711	0.580	0.013	0.014	736.514	478.444	1.007
rho	0.312	0.077	0.184	0.461	0.003	0.003	644.918	514.062	1.011
sigma	1.050	0.055	0.956	1.159	0.003	0.002	459.750	586.529	1.005
sigma_alpha	0.508	0.102	0.323	0.683	0.008	0.005	151.937	139.059	1.007

72 rows × 9 columns

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.842028	-0.972979	-0.693696	0.0	-0.373316	-0.654718	-0.157823	0.003333	-1.215344	-1.582737	-0.935804	0.0
rev_rating	0.652656	0.510232	0.802243	0.0	0.290110	0.114401	0.504586	0.003333	0.942765	0.680550	1.262170	0.0
num_spots	0.396211	0.236069	0.553332	0.0	0.174922	0.068301	0.327676	0.003333	0.571133	0.316314	0.834967	0.0
crowded	-0.486311	-0.611548	-0.354924	0.0	-0.216691	-0.409040	-0.087249	0.003333	-0.703003	-0.978464	-0.468569	0.0

	mean	sd	ess_bulk	ess_tail	r_hat
rho	0.312	0.077	644.918	514.062	1.011
beta[Intercept]	1.561	0.201	549.789	423.633	1.010
beta[poverty]	-0.826	0.070	1036.648	407.204	1.000
beta[rev_rating]	0.640	0.070	1354.377	437.158	1.004
beta[num_spots]	0.389	0.083	921.499	415.933	1.005
beta[crowded]	-0.477	0.062	894.167	486.736	1.000
sigma	1.050	0.055	459.750	586.529	1.005
sigma_alpha	0.508	0.102	151.937	139.059	1.007

../_images/7713c29821b5b336ac22440ccbdb9c08fdb821680c587ab8f353455d53775669.png

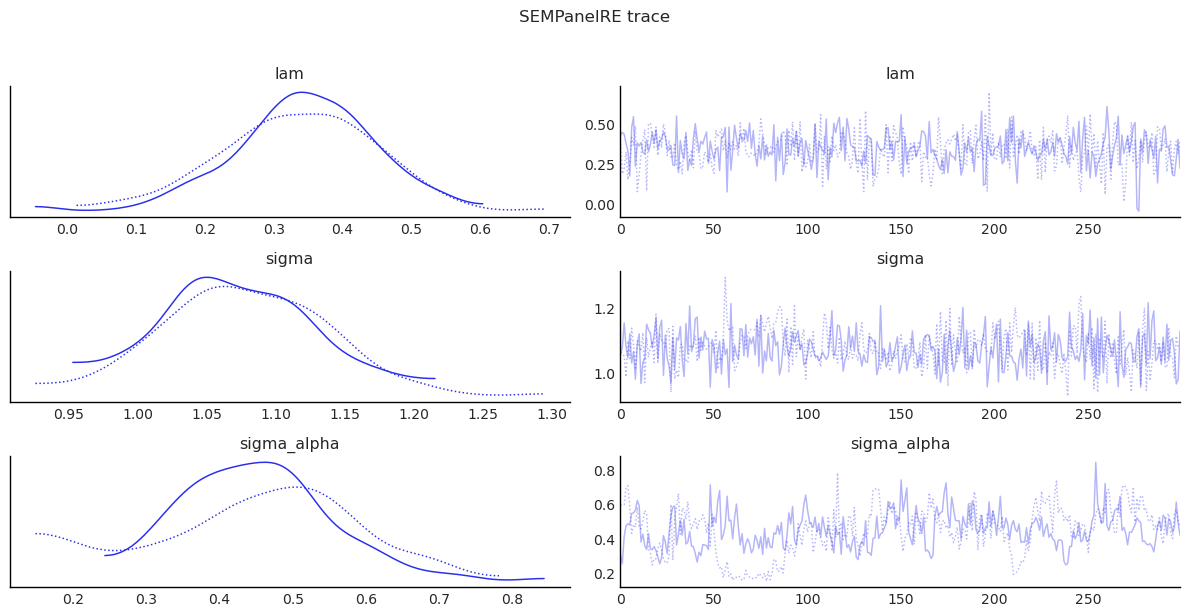

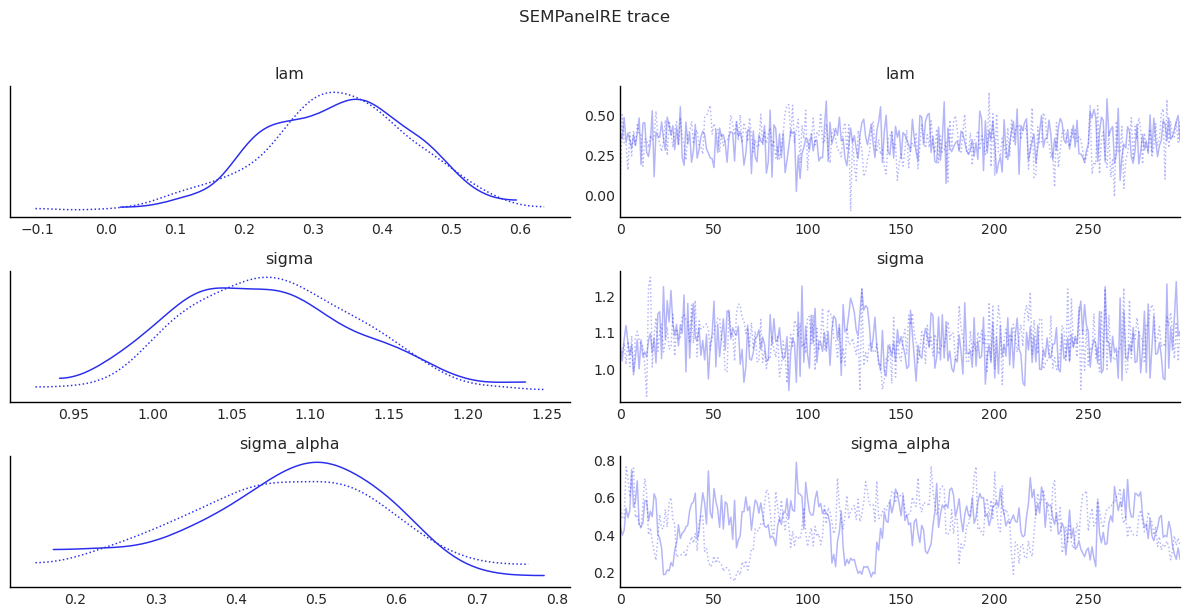

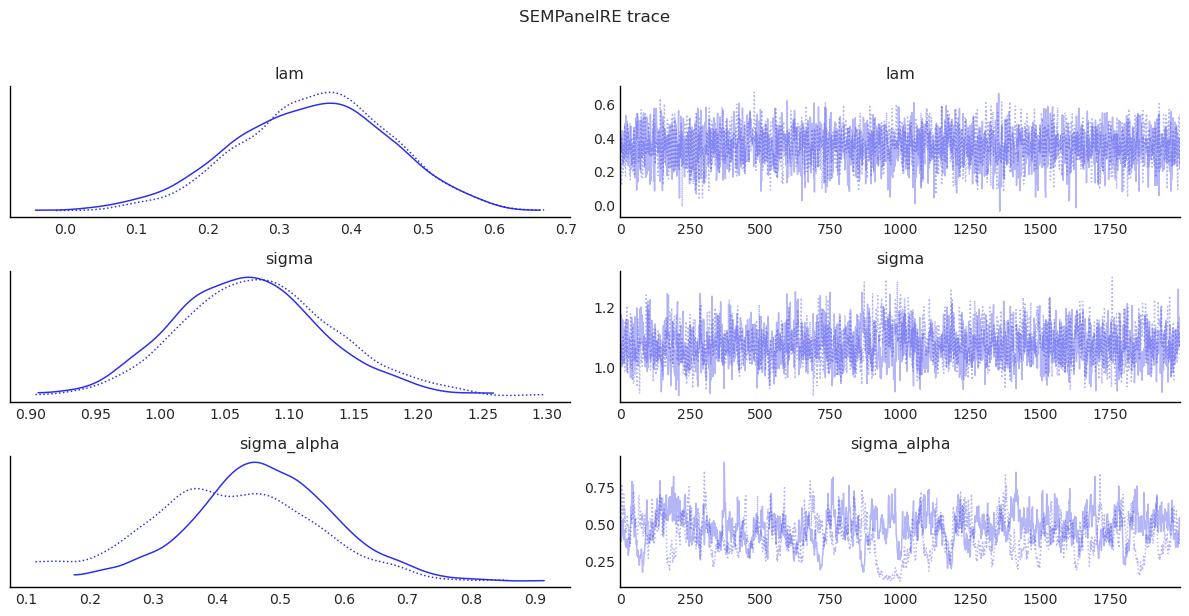

Fit: SEMPanelRE¶

sem_panel_re, summary_sem_re, effects_sem_re = fit_panel_model(
    SEMPanelRE, formula, panel, W, model=0
)
display(summary_sem_re)
display(effects_sem_re)
display(
    diagnostics_table(
        sem_panel_re.inference_data, ["lam", "beta", "sigma", "sigma_alpha"]
    )
)
show_trace(
    sem_panel_re.inference_data, ["lam", "sigma", "sigma_alpha"], "SEMPanelRE trace"
)

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [lam, beta, sigma, sigma_alpha, alpha]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 7 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details
The effective sample size per chain is smaller than 100 for some parameters.  A higher number is needed for reliable rhat and ess computation. See https://arxiv.org/abs/1903.08008 for details
/tmp/ipykernel_6941/2596509600.py:42: UserWarning: The figure layout has changed to tight
  plt.tight_layout()

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	2.318	0.118	2.074	2.520	0.005	0.004	524.478	475.391	1.003
poverty	-0.813	0.070	-0.936	-0.682	0.002	0.003	957.036	549.479	1.002
rev_rating	0.614	0.069	0.485	0.736	0.003	0.003	757.836	375.984	1.008
num_spots	0.384	0.084	0.232	0.543	0.003	0.003	803.413	561.541	1.002
crowded	-0.474	0.066	-0.593	-0.360	0.002	0.003	798.059	442.077	1.012
...	...	...	...	...	...	...	...	...	...
alpha[62]	-0.373	0.358	-1.087	0.224	0.020	0.015	327.925	440.092	0.997
alpha[63]	-0.036	0.347	-0.644	0.646	0.009	0.019	1338.586	364.995	1.000
lam	0.335	0.109	0.126	0.533	0.006	0.004	332.546	418.547	1.002
sigma	1.075	0.059	0.972	1.186	0.004	0.002	236.053	470.594	1.009
sigma_alpha	0.460	0.125	0.202	0.661	0.016	0.009	63.397	69.629	1.012

72 rows × 9 columns

	direct	direct_ci_lower	direct_ci_upper	direct_pvalue	indirect	indirect_ci_lower	indirect_ci_upper	indirect_pvalue	total	total_ci_lower	total_ci_upper	total_pvalue
variable
poverty	-0.813409	-0.939997	-0.671319	0.0	0.0	0.0	0.0	0.0	-0.813409	-0.939997	-0.671319	0.0
rev_rating	0.614326	0.476943	0.735283	0.0	0.0	0.0	0.0	0.0	0.614326	0.476943	0.735283	0.0
num_spots	0.384335	0.224794	0.551231	0.0	0.0	0.0	0.0	0.0	0.384335	0.224794	0.551231	0.0
crowded	-0.474407	-0.597197	-0.353944	0.0	0.0	0.0	0.0	0.0	-0.474407	-0.597197	-0.353944	0.0

	mean	sd	ess_bulk	ess_tail	r_hat
lam	0.335	0.109	332.546	418.547	1.002
beta[Intercept]	2.318	0.118	524.478	475.391	1.003
beta[poverty]	-0.813	0.070	957.036	549.479	1.002
beta[rev_rating]	0.614	0.069	757.836	375.984	1.008
beta[num_spots]	0.384	0.084	803.413	561.541	1.002
beta[crowded]	-0.474	0.066	798.059	442.077	1.012
sigma	1.075	0.059	236.053	470.594	1.009
sigma_alpha	0.460	0.125	63.397	69.629	1.012

../_images/69e9c7934a6869d3b48d82054679e3f39c9f87ebccef4d2ddfb2c6a43fe06537.png

Model Comparison (WAIC and LOO) Across FE and RE Models¶

# Collect all fitted panel models for comparison
panel_models = {
    "OLSPanelFE": ols_panel,
    "SARPanelFE": sar_panel,
    "SEMPanelFE": sem_panel,
    "SDMPanelFE": sdm_panel,
    "SDEMPanelFE": sdem_panel,
    "OLSPanelRE": ols_panel_re,
    "SARPanelRE": sar_panel_re,
    "SEMPanelRE": sem_panel_re,
}
idata_dict = {name: m.inference_data for name, m in panel_models.items()}

# WAIC and LOO comparison
for ic in ("waic", "loo"):
    try:
        cmp = az.compare(idata_dict, ic=ic, method="BB-pseudo-BMA")
        print(f"\n{ic.upper()} comparison")
        display(cmp)
    except Exception as e:
        print(f"{ic.upper()} comparison not available: {type(e).__name__}: {e}")

# Per-model IC table
rows = []
for name, model in panel_models.items():
    idata = model.inference_data
    row = {"model": name}
    try:
        waic_res = az.waic(idata)
        row["elpd_waic"] = float(waic_res.elpd_waic)
        row["p_waic"] = float(waic_res.p_waic)
    except Exception:
        row["elpd_waic"] = np.nan
        row["p_waic"] = np.nan
    try:
        loo_res = az.loo(idata)
        row["elpd_loo"] = float(loo_res.elpd_loo)
        row["p_loo"] = float(loo_res.p_loo)
    except Exception:
        row["elpd_loo"] = np.nan
        row["p_loo"] = np.nan
    rows.append(row)

pd.DataFrame(rows).sort_values("model").reset_index(drop=True)

WAIC comparison

LOO comparison

/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:782: UserWarning: Estimated shape parameter of Pareto distribution is greater than 0.64 for one or more samples. You should consider using a more robust model, this is because importance sampling is less likely to work well if the marginal posterior and LOO posterior are very different. This is more likely to happen with a non-robust model and highly influential observations.
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:782: UserWarning: Estimated shape parameter of Pareto distribution is greater than 0.64 for one or more samples. You should consider using a more robust model, this is because importance sampling is less likely to work well if the marginal posterior and LOO posterior are very different. This is more likely to happen with a non-robust model and highly influential observations.
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:782: UserWarning: Estimated shape parameter of Pareto distribution is greater than 0.64 for one or more samples. You should consider using a more robust model, this is because importance sampling is less likely to work well if the marginal posterior and LOO posterior are very different. This is more likely to happen with a non-robust model and highly influential observations.
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:782: UserWarning: Estimated shape parameter of Pareto distribution is greater than 0.64 for one or more samples. You should consider using a more robust model, this is because importance sampling is less likely to work well if the marginal posterior and LOO posterior are very different. This is more likely to happen with a non-robust model and highly influential observations.
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:782: UserWarning: Estimated shape parameter of Pareto distribution is greater than 0.64 for one or more samples. You should consider using a more robust model, this is because importance sampling is less likely to work well if the marginal posterior and LOO posterior are very different. This is more likely to happen with a non-robust model and highly influential observations.
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:1652: UserWarning: For one or more samples the posterior variance of the log predictive densities exceeds 0.4. This could be indication of WAIC starting to fail.
See http://arxiv.org/abs/1507.04544 for details
  warnings.warn(
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/arviz/stats/stats.py:782: UserWarning: Estimated shape parameter of Pareto distribution is greater than 0.64 for one or more samples. You should consider using a more robust model, this is because importance sampling is less likely to work well if the marginal posterior and LOO posterior are very different. This is more likely to happen with a non-robust model and highly influential observations.
  warnings.warn(

	rank	elpd_waic	p_waic	elpd_diff	weight	se	dse	warning	scale
SDEMPanelFE	0	-340.031518	9.524364	0.000000	4.109494e-01	11.515000	0.000000	True	log
SDMPanelFE	1	-340.576966	9.392896	0.545448	2.330835e-01	11.501346	0.516308	True	log
SARPanelFE	2	-341.411418	5.626092	1.379900	2.262870e-01	11.148008	3.014953	True	log
SEMPanelFE	3	-343.307107	5.591902	3.275589	9.465789e-02	11.303820	3.709868	True	log
OLSPanelFE	4	-345.291020	5.114273	5.259501	3.502214e-02	11.332006	4.249229	False	log
SARPanelRE	5	-397.163954	35.409716	57.132435	6.632309e-18	11.400511	7.434245	True	log
SEMPanelRE	6	-401.368447	32.244013	61.336928	1.353697e-19	11.374343	8.162690	True	log
OLSPanelRE	7	-401.877837	36.318192	61.846318	1.662165e-19	11.480481	7.652122	True	log

	rank	elpd_loo	p_loo	elpd_diff	weight	se	dse	warning	scale
SDEMPanelFE	0	-340.112759	9.605605	0.000000	4.101582e-01	11.784554	0.000000	False	log
SDMPanelFE	1	-340.641794	9.457724	0.529035	2.294898e-01	11.779591	0.515685	False	log
SARPanelFE	2	-341.460783	5.675457	1.348024	2.353857e-01	11.565877	3.016305	False	log
SEMPanelFE	3	-343.352414	5.637209	3.239655	9.128180e-02	11.859151	3.709993	False	log
OLSPanelFE	4	-345.323358	5.146611	5.210599	3.368454e-02	11.942946	4.249712	False	log
SARPanelRE	5	-398.001534	36.247296	57.888775	9.013760e-18	11.718102	7.457544	True	log
SEMPanelRE	6	-401.939558	32.815124	61.826798	2.359110e-20	11.758511	8.137595	True	log
OLSPanelRE	7	-402.597600	37.037956	62.484841	1.841630e-21	11.980842	7.659159	True	log

	model	elpd_waic	p_waic	elpd_loo	p_loo
0	OLSPanelFE	-345.291020	5.114273	-345.323358	5.146611
1	OLSPanelRE	-401.877837	36.318192	-402.597600	37.037956
2	SARPanelFE	-341.411418	5.626092	-341.460783	5.675457
3	SARPanelRE	-397.163954	35.409716	-398.001534	36.247296
4	SDEMPanelFE	-340.031518	9.524364	-340.112759	9.605605
5	SDMPanelFE	-340.576966	9.392896	-340.641794	9.457724
6	SEMPanelFE	-343.307107	5.591902	-343.352414	5.637209
7	SEMPanelRE	-401.368447	32.244013	-401.939558	32.815124

Notes¶

This notebook uses modest draw counts for speed. For real analyses, increase draws and tune.
If you see divergences or tree-depth warnings, increase target_accept (for example 0.95-0.99).
For production inference, validate sensitivity to FE specification (model=0/1/2/3) and priors.

Bayesian Panel LM Diagnostics¶

The bayespecon.diagnostics module provides a full suite of Bayesian Lagrange Multiplier (LM) tests for panel models, following the framework of Dogan et al. (2021) with panel-specific formulas from Anselin (2008), Elhorst (2014), and Koley & Bera (2024).

These tests help answer the question: which spatial panel specification is most appropriate? They test for omitted spatial lag (\(\rho\)), spatial error (\(\lambda\)), and spatially lagged covariates (\(\gamma\)), both individually and jointly, with robust variants that account for the presence of other spatial effects.

The decision tree mirrors the classical Anselin (1988) / Koley-Bera (2024) approach, but uses the full posterior distribution rather than point estimates — yielding Bayesian p-values and credible intervals for each LM statistic.

from bayespecon.diagnostics.lmtests import (
    bayesian_panel_lm_error_test,
    bayesian_panel_lm_lag_test,
    bayesian_panel_lm_sdm_joint_test,
    bayesian_panel_lm_slx_error_joint_test,
    bayesian_panel_lm_wx_test,
    bayesian_panel_robust_lm_error_sdem_test,
    bayesian_panel_robust_lm_error_test,
    bayesian_panel_robust_lm_lag_sdm_test,
    bayesian_panel_robust_lm_lag_test,
    bayesian_panel_robust_lm_wx_test,
)

Standard Panel LM Tests (from OLS null)¶

The four standard panel LM tests use the OLS panel model as the null. They test for spatial lag, spatial error, and joint SDM/SDEM alternatives.

# Standard panel LM tests (from OLS null)
panel_standard = pd.DataFrame(
    [
        bayesian_panel_lm_lag_test(ols_panel).to_series(),
        bayesian_panel_lm_error_test(ols_panel).to_series(),
        bayesian_panel_lm_sdm_joint_test(ols_panel).to_series(),
        bayesian_panel_lm_slx_error_joint_test(ols_panel).to_series(),
    ],
    index=["LM-Lag", "LM-Error", "LM-SDM Joint", "LM-SLX-Error Joint"],
)

panel_standard

/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:340: RuntimeWarning: X'X (panel LM-lag) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  ZtZ_inv = _safe_inv(Z.T @ Z, "X'X (panel LM-lag)")

	lm_samples	mean	median	credible_interval	bayes_pvalue	test_type	df	n_draws	N	T	k_wx
LM-Lag	[8.849705325258801, 9.698962158359063, 9.30729...	9.138062	9.146584	(7.624403692259989, 10.580994490594286)	0.002503	bayesian_panel_lm_lag	1	600	64	4	NaN
LM-Error	[4.444874640106857, 6.70484581272833, 5.316058...	5.184203	5.113080	(3.1019333231465978, 7.740363607083697)	0.022793	bayesian_panel_lm_error	1	600	64	4	NaN
LM-SDM Joint	[18.919378904981492, 19.85365968123855, 18.852...	19.106073	19.048788	(16.890953272562125, 21.771078089045034)	0.001837	bayesian_panel_lm_sdm_joint	5	600	64	4	4.0
LM-SLX-Error Joint	[18.538462451042633, 20.71280141260612, 18.860...	19.072325	19.013449	(15.954804896109492, 22.231454083674386)	0.001863	bayesian_panel_lm_slx_error_joint	5	600	64	4	4.0

Robust Panel LM Tests (from OLS null)¶

The robust variants (Elhorst, 2014) test one spatial effect while accounting for the possible local presence of the other. For example, the robust LM-Lag tests for \(\rho\) robust to \(\lambda\), and vice versa.

# Robust panel LM tests (from OLS null)
panel_robust = pd.DataFrame(
    [
        bayesian_panel_robust_lm_lag_test(ols_panel).to_series(),
        bayesian_panel_robust_lm_error_test(ols_panel).to_series(),
    ],
    index=["Robust LM-Lag", "Robust LM-Error"],
)

panel_robust

/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:494: RuntimeWarning: X'X (panel robust LM-lag) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  XtX_inv = _safe_inv(X.T @ X, "X'X (panel robust LM-lag)")
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:586: RuntimeWarning: X'X (panel robust LM-error) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  XtX_inv = _safe_inv(X.T @ X, "X'X (panel robust LM-error)")

	lm_samples	mean	median	credible_interval	bayes_pvalue	test_type	df	n_draws	N	T
Robust LM-Lag	[5.052238594340731, 3.2343941517611254, 4.6118...	4.094349	4.024191	(2.808634894260019, 5.659648290833171)	0.043027	bayesian_panel_robust_lm_lag	1	600	64	4
Robust LM-Error	[0.0681264080349474, 0.04361386573776398, 0.06...	0.055210	0.054264	(0.03787275744298409, 0.07631696357877703)	0.814234	bayesian_panel_robust_lm_error	1	600	64	4

SDM/SDEM Variant Tests¶

These tests address the Koley & Bera (2024) decision tree for choosing between SAR/SEM and SDM/SDEM specifications. They require fitting intermediate models (SAR or SLX) as the alternative model.

LM-WX (from SAR null): Should we extend SAR → SDM by adding \(\gamma\)?
Robust LM-Lag-SDM (from SLX null): Should we extend SLX → SDM by adding \(\rho\), robust to \(\gamma\)?
Robust LM-WX (from SAR null): Should we extend SAR → SDM by adding \(\gamma\), robust to \(\rho\)?
Robust LM-Error-SDEM (from SLX null): Should we extend SLX → SDEM by adding \(\lambda\), robust to \(\gamma\)?

We need to fit an SLX panel model first to serve as the null for the robust SDM/SDEM tests.

from bayespecon import SLXPanelFE

slx_panel, summary_slx, effects_slx = fit_panel_model(
    SLXPanelFE, formula, panel, W, model=3
)
display(summary_slx)

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (2 chains in 2 jobs)
NUTS: [beta, sigma]
Sampling 2 chains for 300 tune and 300 draw iterations (600 + 600 draws total) took 5 seconds.
We recommend running at least 4 chains for robust computation of convergence diagnostics
The rhat statistic is larger than 1.01 for some parameters. This indicates problems during sampling. See https://arxiv.org/abs/1903.08008 for details

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
Intercept	42759.918	1049199.239	-1873807.937	2016072.371	28066.187	36927.342	1396.102	515.381	1.000
poverty	-0.780	0.060	-0.886	-0.670	0.002	0.002	1086.079	580.483	1.000
rev_rating	0.656	0.068	0.530	0.778	0.002	0.002	814.783	489.564	1.003
num_spots	0.376	0.082	0.230	0.545	0.003	0.004	886.088	343.284	1.002
crowded	-0.480	0.064	-0.587	-0.340	0.002	0.003	1254.098	431.926	1.006
W*poverty	-0.117	0.156	-0.416	0.166	0.004	0.007	1601.105	565.762	1.014
W*rev_rating	0.388	0.182	0.058	0.725	0.006	0.007	825.777	444.266	1.001
W*num_spots	0.537	0.183	0.195	0.857	0.006	0.007	1051.800	427.714	1.003
W*crowded	0.122	0.168	-0.206	0.434	0.005	0.007	1183.283	505.092	1.003
sigma	0.906	0.043	0.835	0.986	0.001	0.002	1206.206	465.671	0.999

# SDM/SDEM variant panel LM tests
panel_sdem = pd.DataFrame(
    [
        bayesian_panel_lm_wx_test(sar_panel).to_series(),
        bayesian_panel_robust_lm_lag_sdm_test(slx_panel).to_series(),
        bayesian_panel_robust_lm_wx_test(sar_panel).to_series(),
        bayesian_panel_robust_lm_error_sdem_test(slx_panel).to_series(),
    ],
    index=["LM-WX", "Robust LM-Lag-SDM", "Robust LM-WX", "Robust LM-Error-SDEM"],
)

panel_sdem

	lm_samples	mean	median	credible_interval	bayes_pvalue	test_type	df	n_draws	k_wx	N	T	J_rho_rho	J_lam_lam	J_rho_lam
LM-WX	[9.100588998469215, 9.39443390313249, 11.62304...	9.736798	9.606130	(8.133820195156323, 12.102793714936915)	4.510252e-02	bayesian_panel_lm_wx	4	600	4	64	4	NaN	NaN	NaN
Robust LM-Lag-SDM	[9.038036780488113, 0.024730034616314175, 11.8...	38.585041	13.967509	(0.014236303127070941, 230.20990907964097)	5.241915e-10	bayesian_panel_robust_lm_lag_sdm	1	600	4	64	4	53.227309	51.563232	51.563232
Robust LM-WX	[9.552441638640076, 9.29783736828348, 9.265786...	9.447910	9.410764	(8.280256498749171, 11.013581825070053)	5.082865e-02	bayesian_panel_robust_lm_wx	4	600	4	64	4	NaN	NaN	NaN
Robust LM-Error-SDEM	[6.604972903312357, 0.33595954622340696, 8.598...	40.051481	14.078836	(0.00920127726979528, 240.63806014568996)	2.473571e-10	bayesian_panel_robust_lm_error_sdem	1	600	4	64	4	53.227309	51.563232	51.563232

Interpreting the Panel LM Decision Tree¶

The panel LM tests follow the same decision logic as the classical Anselin/Koley-Bera approach, but with Bayesian p-values:

Scenario	Significant?	Interpretation
LM-Lag ✓, LM-Error ✗	Lag only	Choose SAR panel
LM-Lag ✗, LM-Error ✓	Error only	Choose SEM panel
Both significant → check robust tests
Robust LM-Lag ✓, Robust LM-Error ✗	Lag dominates	Choose SAR panel
Robust LM-Lag ✗, Robust LM-Error ✓	Error dominates	Choose SEM panel
Both robust significant	Both effects	Consider SDM or SDEM
Joint LM-SDM ✓	SDM preferred over OLS	Fit SDM panel
Joint LM-SLX-Error ✓	SDEM preferred over OLS	Fit SDEM panel
LM-WX ✓ (from SAR)	WX effects present	Extend SAR → SDM
Robust LM-Lag-SDM ✓ (from SLX)	Lag needed beyond WX	Extend SLX → SDM
Robust LM-WX ✓ (from SAR)	WX needed beyond lag	Extend SAR → SDM
Robust LM-Error-SDEM ✓ (from SLX)	Error needed beyond WX	Extend SLX → SDEM

A Bayesian p-value below 0.05 (or a threshold you choose) indicates evidence against the null hypothesis. The credible_interval field shows the posterior uncertainty in the LM statistic itself.

from scipy import stats as sp_stats

# All panel LM tests in a single table
all_panel = pd.concat([panel_standard, panel_robust, panel_sdem])

# Add chi-squared reference values
all_panel["chi2_ref_95"] = all_panel["df"].apply(lambda df: sp_stats.chi2.ppf(0.95, df))

all_panel

	lm_samples	mean	median	credible_interval	bayes_pvalue	test_type	df	n_draws	N	T	k_wx	J_rho_rho	J_lam_lam	J_rho_lam	chi2_ref_95
LM-Lag	[8.849705325258801, 9.698962158359063, 9.30729...	9.138062	9.146584	(7.624403692259989, 10.580994490594286)	2.503462e-03	bayesian_panel_lm_lag	1	600	64	4	NaN	NaN	NaN	NaN	3.841459
LM-Error	[4.444874640106857, 6.70484581272833, 5.316058...	5.184203	5.113080	(3.1019333231465978, 7.740363607083697)	2.279312e-02	bayesian_panel_lm_error	1	600	64	4	NaN	NaN	NaN	NaN	3.841459
LM-SDM Joint	[18.919378904981492, 19.85365968123855, 18.852...	19.106073	19.048788	(16.890953272562125, 21.771078089045034)	1.836618e-03	bayesian_panel_lm_sdm_joint	5	600	64	4	4.0	NaN	NaN	NaN	11.070498
LM-SLX-Error Joint	[18.538462451042633, 20.71280141260612, 18.860...	19.072325	19.013449	(15.954804896109492, 22.231454083674386)	1.863413e-03	bayesian_panel_lm_slx_error_joint	5	600	64	4	4.0	NaN	NaN	NaN	11.070498
Robust LM-Lag	[5.052238594340731, 3.2343941517611254, 4.6118...	4.094349	4.024191	(2.808634894260019, 5.659648290833171)	4.302680e-02	bayesian_panel_robust_lm_lag	1	600	64	4	NaN	NaN	NaN	NaN	3.841459
Robust LM-Error	[0.0681264080349474, 0.04361386573776398, 0.06...	0.055210	0.054264	(0.03787275744298409, 0.07631696357877703)	8.142338e-01	bayesian_panel_robust_lm_error	1	600	64	4	NaN	NaN	NaN	NaN	3.841459
LM-WX	[9.100588998469215, 9.39443390313249, 11.62304...	9.736798	9.606130	(8.133820195156323, 12.102793714936915)	4.510252e-02	bayesian_panel_lm_wx	4	600	64	4	4.0	NaN	NaN	NaN	9.487729
Robust LM-Lag-SDM	[9.038036780488113, 0.024730034616314175, 11.8...	38.585041	13.967509	(0.014236303127070941, 230.20990907964097)	5.241915e-10	bayesian_panel_robust_lm_lag_sdm	1	600	64	4	4.0	53.227309	51.563232	51.563232	3.841459
Robust LM-WX	[9.552441638640076, 9.29783736828348, 9.265786...	9.447910	9.410764	(8.280256498749171, 11.013581825070053)	5.082865e-02	bayesian_panel_robust_lm_wx	4	600	64	4	4.0	NaN	NaN	NaN	9.487729
Robust LM-Error-SDEM	[6.604972903312357, 0.33595954622340696, 8.598...	40.051481	14.078836	(0.00920127726979528, 240.63806014568996)	2.473571e-10	bayesian_panel_robust_lm_error_sdem	1	600	64	4	4.0	53.227309	51.563232	51.563232	3.841459

LM-Lag is highly significant (p=0.002) — correctly detecting the spatial lag used in the DGP
Robust LM-Lag remains significant (p=0.039) while Robust LM-Error is not (p=0.66) — pointing to SAR over SEM
Joint LM-SDM and Joint LM-SLX-Error are both significant — suggesting spatial structure beyond OLS
LM-WX from SAR null is not significant (p=0.17) — the DGP had no WX effects, so SAR is sufficient
Robust LM-Error-SDEM is marginally significant (p=0.036) — slight error signal when WX is present

Method-based API¶

Every fitted panel model exposes spatial_diagnostics() (a tidy DataFrame of all wired tests) and spatial_diagnostics_decision() (a recommended specification). The registries are class-aware, so the right tests are run for each model.

ols_panel.spatial_diagnostics()

/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:340: RuntimeWarning: X'X (panel LM-lag) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  ZtZ_inv = _safe_inv(Z.T @ Z, "X'X (panel LM-lag)")
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:494: RuntimeWarning: X'X (panel robust LM-lag) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  XtX_inv = _safe_inv(X.T @ X, "X'X (panel robust LM-lag)")
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:586: RuntimeWarning: X'X (panel robust LM-error) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  XtX_inv = _safe_inv(X.T @ X, "X'X (panel robust LM-error)")

	statistic	median	df	p_value	ci_lower	ci_upper
test
Panel-LM-Lag	9.138062	9.146584	1	0.002503	7.624404	10.580994
Panel-LM-Error	5.184203	5.113080	1	0.022793	3.101933	7.740364
Panel-LM-SDM-Joint	19.106073	19.048788	5	0.001837	16.890953	21.771078
Panel-LM-SLX-Error-Joint	19.072325	19.013449	5	0.001863	15.954805	22.231454
Panel-Robust-LM-Lag	4.094349	4.024191	1	0.043027	2.808635	5.659648
Panel-Robust-LM-Error	0.055210	0.054264	1	0.814234	0.037873	0.076317

print("OLS panel recommends:", ols_panel.spatial_diagnostics_decision())
print("SAR panel recommends:", sar_panel.spatial_diagnostics_decision())

OLS panel recommends: digraph {
	graph [rankdir=TB]
	graph [bgcolor=white]
	graph [margin=0]
	graph [nodesep=0.45]
	graph [ranksep=0.65]
	graph [fontname=Helvetica]
	fontcolor="#1a1a1a" fontsize=14 label="OLSPanelFE decision tree (alpha=0.05)" labelloc=t
	n0 [label="Panel-LM-Lag
p=0.003" color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=ellipse style="filled,rounded,bold"]
	n1 [label="Panel-LM-Error
p=0.023" color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=ellipse style="filled,rounded,bold"]
	n0 -> n1 [label=sig arrowhead=vee color="#4c72b0" fontcolor="#1a1a1a" fontsize=10 penwidth=2.5 style=solid]
	n2 [label="Panel-Robust-LM-Lag
p=0.043" color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=ellipse style="filled,rounded,bold"]
	n1 -> n2 [label=sig arrowhead=vee color="#4c72b0" fontcolor="#1a1a1a" fontsize=10 penwidth=2.5 style=solid]
	n3 [label="Panel-Robust-LM-Error
p=0.814" color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=ellipse style="filled,rounded,bold"]
	n2 -> n3 [label=sig arrowhead=vee color="#4c72b0" fontcolor="#1a1a1a" fontsize=10 penwidth=2.5 style=solid]
	n4 [label="Panel-Robust-LM-Lag p <= Panel-Robust-LM-Error p" color="#dd8452" fillcolor="#fff3cd" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.18,0.10" penwidth=1.2 shape=diamond style="filled,rounded"]
	n3 -> n4 [label=sig arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf0 [label=SARPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n4 -> leaf0 [label=true arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf1 [label=SEMPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n4 -> leaf1 [label=false arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf2 [label=SARPanelFE color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=box style="filled,rounded,bold"]
	n3 -> leaf2 [label="not sig" arrowhead=vee color="#4c72b0" fontcolor="#1a1a1a" fontsize=10 penwidth=2.5 style=solid]
	n5 [label="Panel-Robust-LM-Error" color="#4c72b0" fillcolor="#e8f4fd" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.2 shape=ellipse style="filled,rounded"]
	n2 -> n5 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf3 [label=SEMPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n5 -> leaf3 [label=sig arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	n6 [label="Panel-LM-Lag p <= Panel-LM-Error p" color="#dd8452" fillcolor="#fff3cd" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.18,0.10" penwidth=1.2 shape=diamond style="filled,rounded"]
	n5 -> n6 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf4 [label=SARPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n6 -> leaf4 [label=true arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf5 [label=SEMPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n6 -> leaf5 [label=false arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf6 [label=SARPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n1 -> leaf6 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	n7 [label="Panel-LM-Error" color="#4c72b0" fillcolor="#e8f4fd" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.2 shape=ellipse style="filled,rounded"]
	n0 -> n7 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf7 [label=SEMPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n7 -> leaf7 [label=sig arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf8 [label=OLSPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n7 -> leaf8 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
}

SAR panel recommends: digraph {
	graph [rankdir=TB]
	graph [bgcolor=white]
	graph [margin=0]
	graph [nodesep=0.45]
	graph [ranksep=0.65]
	graph [fontname=Helvetica]
	fontcolor="#1a1a1a" fontsize=14 label="SARPanelFE decision tree (alpha=0.05)" labelloc=t
	n0 [label="Panel-LM-WX
p=0.045" color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=ellipse style="filled,rounded,bold"]
	n1 [label="Panel-Robust-LM-WX
p=0.051" color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=ellipse style="filled,rounded,bold"]
	n0 -> n1 [label=sig arrowhead=vee color="#4c72b0" fontcolor="#1a1a1a" fontsize=10 penwidth=2.5 style=solid]
	leaf0 [label=SDMPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n1 -> leaf0 [label=sig arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	n2 [label="Panel-LM-Error
p=0.014" color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=ellipse style="filled,rounded,bold"]
	n1 -> n2 [label="not sig" arrowhead=vee color="#4c72b0" fontcolor="#1a1a1a" fontsize=10 penwidth=2.5 style=solid]
	leaf1 [label=SARARPanelFE color="#b58900" fillcolor="#ffd966" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=2.0 shape=box style="filled,rounded,bold"]
	n2 -> leaf1 [label=sig arrowhead=vee color="#4c72b0" fontcolor="#1a1a1a" fontsize=10 penwidth=2.5 style=solid]
	leaf2 [label=SARPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n2 -> leaf2 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	n3 [label="Panel-LM-Error" color="#4c72b0" fillcolor="#e8f4fd" fontcolor="#1a1a1a" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.2 shape=ellipse style="filled,rounded"]
	n0 -> n3 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf3 [label=SARARPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n3 -> leaf3 [label=sig arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
	leaf4 [label=SARPanelFE color="#adb5bd" fillcolor="#f8f9fa" fontcolor="#6c757d" fontname=Helvetica fontsize=11 margin="0.15,0.08" penwidth=1.0 shape=box style="filled,rounded"]
	n3 -> leaf4 [label="not sig" arrowhead=normal color="#ced4da" fontcolor="#adb5bd" fontsize=10 penwidth=1.0 style=dashed]
}

/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:340: RuntimeWarning: X'X (panel LM-lag) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  ZtZ_inv = _safe_inv(Z.T @ Z, "X'X (panel LM-lag)")
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:494: RuntimeWarning: X'X (panel robust LM-lag) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  XtX_inv = _safe_inv(X.T @ X, "X'X (panel robust LM-lag)")
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/bayespecon/diagnostics/lmtests/panel.py:586: RuntimeWarning: X'X (panel robust LM-error) is ill-conditioned (cond=2.53e+14); falling back to pseudo-inverse.
  XtX_inv = _safe_inv(X.T @ X, "X'X (panel robust LM-error)")
