SEM Sampling Backend Profiling

Note: To run this notebook end-to-end you must have the optional JAX backends installed, e.g. conda install jax numpyro blackjax.

This notebook profiles a fixed Spatial Error Model (SEM) across PyMC sampling backends, mirroring sampling_backend_profiling.ipynb (the SAR version). It additionally verifies that the captured log_likelihood group is equivalent across backends — a non-trivial guarantee for SEM because the model defines its likelihood via pm.Potential (Gaussian on the spatially-filtered residual) plus a Jacobian term.

Why this is interesting for SEM specifically

Until recently, the SEM model relied on a manual NumPy block in fit() to populate idata.log_likelihood because PyMC’s JAX log-likelihood path iterates model.observed_RVs — and an pm.Potential-only model has none. As of the spec1 release, when a JAX backend is requested the SEM model is built with a pm.CustomDist whose logp returns the per-observation Gaussian density plus log|I - λW| / n. PyMC then captures log_likelihood natively on every backend.

This notebook validates that contract: under the same DGP and seed, the per-observation log-likelihood produced by the C/Numba pm.Potential path matches the JAX pm.CustomDist path within Monte-Carlo error.

Workflow

  • Simulate SEM data on a regular polygon grid via neighbayes.dgp.simulate_sem

  • Fit the same SEM model under each available backend with idata_kwargs={'log_likelihood': True}

  • Compare runtime, posterior summaries, and log-likelihood across backends

Backends compared:

  • c: PyMC NUTS with the default C-backed FAST_RUN compile mode

  • numba: PyMC NUTS with NUMBA compile mode

  • numpyro: JAX-backed NUTS via NumPyro

  • blackjax: JAX-backed NUTS via BlackJAX

import importlib.util
import time
import warnings

import arviz as az
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from libpysal import graph

from neighbayes import dgp
from neighbayes.models import SEM

warnings.filterwarnings("ignore", category=UserWarning)
warnings.filterwarnings("ignore", category=FutureWarning)

PROFILE_CFG = {
    "n_side": 16,  # grid side; obs = n_side**2 = 256
    "draws": 500,
    "tune": 500,
    "chains": 4,
    "cores": 2,
    "seed": 2026,
    "logdet_method": "eigenvalue",
}

BACKENDS = {
    "c": {
        "nuts_sampler": "pymc",
        "compile_kwargs": {"mode": "FAST_RUN"},
        "requires": [],
    },
    "numba": {
        "nuts_sampler": "pymc",
        "compile_kwargs": {"mode": "NUMBA"},
        "requires": ["numba"],
    },
    "numpyro": {
        "nuts_sampler": "numpyro",
        "compile_kwargs": None,
        "requires": ["numpyro", "jax"],
    },
    "blackjax": {
        "nuts_sampler": "blackjax",
        "compile_kwargs": None,
        "requires": ["blackjax", "jax"],
    },
    "nutpie": {
        "nuts_sampler": "nutpie",
        "compile_kwargs": None,
        "requires": ["nutpie"],
    },
}

TRUE_BETA = np.array([1.0, 0.8, -0.5], dtype=np.float64)
TRUE_LAM = 0.4
TRUE_SIGMA = 0.7

def backend_available(requirements):
    return all(importlib.util.find_spec(name) is not None for name in requirements)


def simulate_sem_data(seed, n_side=16):
    """Simulate SEM data on an n_side x n_side polygon grid.

    Returns the simulated GeoDataFrame plus arrays needed for fitting.
    """
    rng = np.random.default_rng(seed)
    gdf = dgp.simulate_sem(
        n=n_side,
        lam=TRUE_LAM,
        beta=TRUE_BETA,
        sigma=TRUE_SIGMA,
        rng=rng,
        create_gdf=True,
    )
    W_graph = graph.Graph.build_contiguity(gdf, rook=True).transform("r")
    y = gdf["y"].to_numpy()
    X_cols = [c for c in gdf.columns if c.startswith("X_")]
    X = gdf[X_cols].to_numpy()
    return gdf, y, X, W_graph


def fit_backend(backend_name, y, X, W):
    cfg = BACKENDS[backend_name]
    if not backend_available(cfg["requires"]):
        return {
            "backend": backend_name,
            "available": False,
            "total_time_s": np.nan,
            "lam_hat": np.nan,
            "sigma_hat": np.nan,
            "beta_rmse": np.nan,
            "divergences": np.nan,
            "has_log_likelihood": False,
            "idata": None,
            "error": "missing optional dependency",
        }

    t0 = time.perf_counter()
    try:
        model = SEM(y=y, X=X, W=W, logdet_method=PROFILE_CFG["logdet_method"])
        kwargs = dict(
            draws=PROFILE_CFG["draws"],
            tune=PROFILE_CFG["tune"],
            chains=PROFILE_CFG["chains"],
            random_seed=PROFILE_CFG["seed"],
            progressbar=False,
            compute_convergence_checks=False,
            sampler="nuts",
            nuts_sampler=cfg["nuts_sampler"],
            idata_kwargs={"log_likelihood": True},
        )
        if cfg["nuts_sampler"] == "pymc":
            kwargs["cores"] = PROFILE_CFG["cores"]
            kwargs["compile_kwargs"] = cfg["compile_kwargs"]
        idata = model.fit(**kwargs)
        elapsed_s = time.perf_counter() - t0

        beta_hat = idata.posterior["beta"].mean(("chain", "draw")).to_numpy()
        lam_hat = float(idata.posterior["lam"].mean(("chain", "draw")).to_numpy())
        sigma_hat = float(idata.posterior["sigma"].mean(("chain", "draw")).to_numpy())
        divergences = int(idata.sample_stats["diverging"].sum().to_numpy())
        has_ll = (
            hasattr(idata, "log_likelihood") and "obs" in idata.log_likelihood.data_vars
        )
        beta_rmse = float(np.sqrt(((beta_hat - TRUE_BETA) ** 2).mean()))

        return {
            "backend": backend_name,
            "available": True,
            "total_time_s": elapsed_s,
            "lam_hat": lam_hat,
            "sigma_hat": sigma_hat,
            "beta_rmse": beta_rmse,
            "divergences": divergences,
            "has_log_likelihood": has_ll,
            "idata": idata,
            "error": "",
        }
    except Exception as exc:
        return {
            "backend": backend_name,
            "available": True,
            "total_time_s": np.nan,
            "lam_hat": np.nan,
            "sigma_hat": np.nan,
            "beta_rmse": np.nan,
            "divergences": np.nan,
            "has_log_likelihood": False,
            "idata": None,
            "error": f"{type(exc).__name__}: {exc}",
        }

gdf, y, X, W = simulate_sem_data(seed=PROFILE_CFG["seed"], n_side=PROFILE_CFG["n_side"])

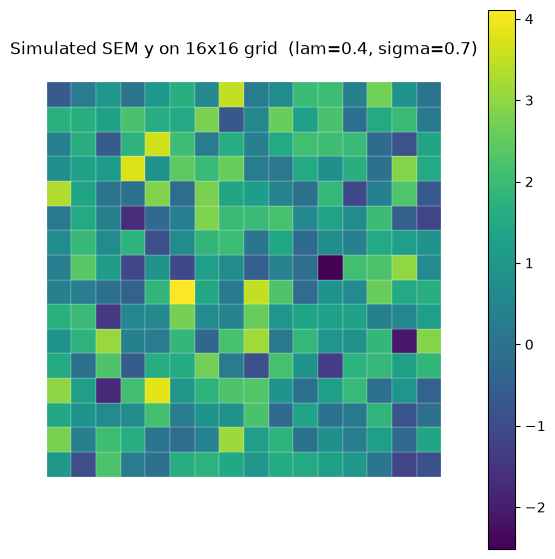

fig, ax = plt.subplots(1, 1, figsize=(7, 7))
gdf.plot(
    column="y", cmap="viridis", legend=True, linewidth=0.15, edgecolor="white", ax=ax
)
ax.set_title(
    f"Simulated SEM y on {PROFILE_CFG['n_side']}x{PROFILE_CFG['n_side']} grid"
    f"  (lam={TRUE_LAM}, sigma={TRUE_SIGMA})"
)
ax.set_axis_off()
plt.show()
../_images/89b591dfd5e7c23a790846a6f2c88dffd3808f04e964f3e299abb19b52e1d68e.png
rows = []
for backend_name in BACKENDS:
    print(f"Profiling backend={backend_name}...")
    rows.append(fit_backend(backend_name, y, X, W))

results = pd.DataFrame(rows)
results["lam_abs_error"] = (results["lam_hat"] - TRUE_LAM).abs()
results = results.sort_values(
    ["available", "total_time_s"], ascending=[False, True], na_position="last"
).reset_index(drop=True)

display_cols = [
    "backend",
    "available",
    "total_time_s",
    "lam_hat",
    "lam_abs_error",
    "sigma_hat",
    "beta_rmse",
    "divergences",
    "has_log_likelihood",
    "error",
]
results[display_cols].round(
    {
        "total_time_s": 3,
        "lam_hat": 3,
        "lam_abs_error": 3,
        "sigma_hat": 3,
        "beta_rmse": 3,
    }
)

Profiling backend=c...
Profiling backend=numba...
Profiling backend=numpyro...
Profiling backend=blackjax...
Profiling backend=nutpie...

Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 2 jobs)
NUTS: [lam, beta, sigma2]
Sampling 4 chains for 500 tune and 500 draw iterations (2_000 + 2_000 draws total) took 11 seconds.
Initializing NUTS using jitter+adapt_diag...
Multiprocess sampling (4 chains in 2 jobs)
NUTS: [lam, beta, sigma2]
Sampling 4 chains for 500 tune and 500 draw iterations (2_000 + 2_000 draws total) took 10 seconds.
/home/runner/micromamba/envs/test/lib/python3.14/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm
backend available total_time_s lam_hat lam_abs_error sigma_hat beta_rmse divergences has_log_likelihood error
0 nutpie True 5.331 0.449 0.049 0.692 0.032 0.0 False
1 numpyro True 9.939 0.448 0.048 0.693 0.033 0.0 True
2 numba True 13.819 0.451 0.051 0.693 0.032 0.0 True
3 c True 26.956 0.451 0.051 0.693 0.032 0.0 True
4 blackjax True NaN NaN NaN NaN NaN NaN False TypeError: build_kernel.<locals>.kernel() got ...

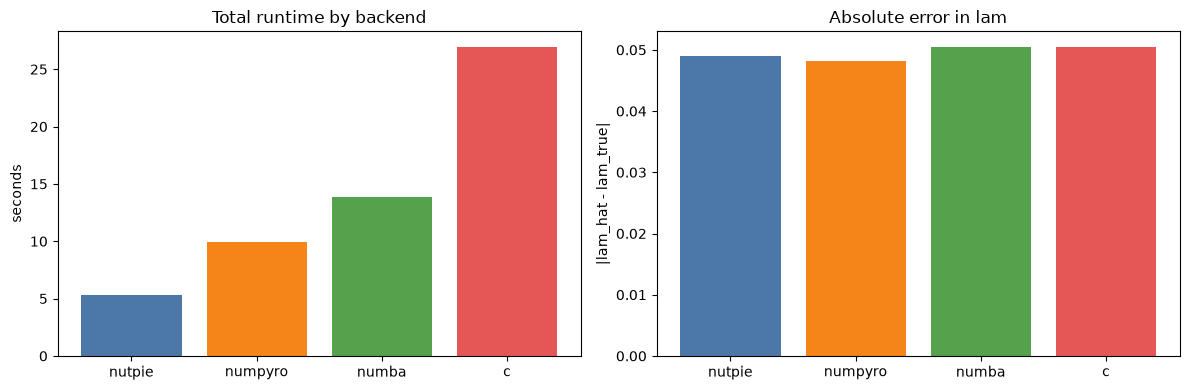

ok = results[results["total_time_s"].notna()].copy()
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
if not ok.empty:
    palette = ["#4c78a8", "#f58518", "#54a24b", "#e45756"][: len(ok)]
    axes[0].bar(ok["backend"], ok["total_time_s"], color=palette)
    axes[0].set_title("Total runtime by backend")
    axes[0].set_ylabel("seconds")
    axes[1].bar(ok["backend"], ok["lam_abs_error"], color=palette)
    axes[1].set_title("Absolute error in lam")
    axes[1].set_ylabel("|lam_hat - lam_true|")
plt.tight_layout()
plt.show()
../_images/9cf4e09df1b11a277f8f5830240de64cd5990a3a9991d04b1aaf84a804f7d62a.png

Log-likelihood equivalence across backends

The has_log_likelihood column above must be True for every available backend — including JAX backends — confirming that PyMC’s native log-likelihood capture works for SEM regardless of which sampler is used.

Below we check that the per-observation posterior-mean log-likelihood is consistent across backends, modulo Monte-Carlo noise from independent chains.

successful = {
    row["backend"]: row["idata"]
    for _, row in results.iterrows()
    if row["has_log_likelihood"]
}
print("Backends with native log_likelihood capture:", list(successful))

ll_means = {}
ll_totals = {}
for name, idata in successful.items():
    obs = idata.log_likelihood["obs"]
    obs_dim = [d for d in obs.dims if d not in ("chain", "draw")][0]
    ll_means[name] = obs.mean(("chain", "draw")).values
    ll_totals[name] = float(obs.sum(obs_dim).mean(("chain", "draw")).values)

summary = pd.DataFrame(
    {
        "backend": list(ll_totals),
        "mean_total_loglik": [ll_totals[k] for k in ll_totals],
        "mean_per_obs_loglik": [float(ll_means[k].mean()) for k in ll_means],
    }
)
summary.round(4)

Backends with native log_likelihood capture: ['numpyro', 'numba', 'c']
backend mean_total_loglik mean_per_obs_loglik
0 numpyro -275.8618 -1.0776
1 numba -275.8633 -1.0776
2 c -275.8633 -1.0776

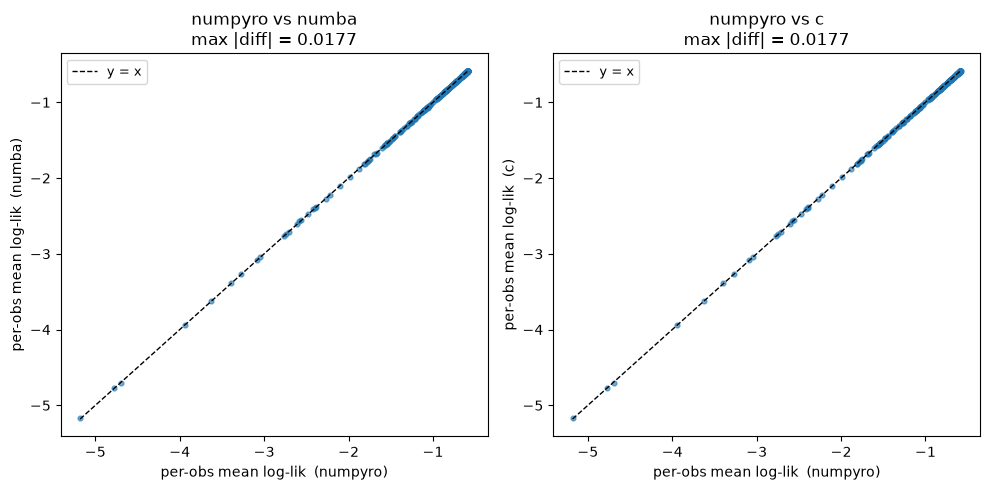

names = list(successful)
if len(names) >= 2:
    ref = names[0]
    others = names[1:]
    fig, axes = plt.subplots(
        1, len(others), figsize=(5 * len(others), 5), squeeze=False
    )
    for ax, other in zip(axes[0], others):
        x = ll_means[ref]
        y_arr = ll_means[other]
        ax.scatter(x, y_arr, s=12, alpha=0.6)
        lo = float(min(x.min(), y_arr.min()))
        hi = float(max(x.max(), y_arr.max()))
        ax.plot([lo, hi], [lo, hi], "k--", lw=1, label="y = x")
        ax.set_xlabel(f"per-obs mean log-lik  ({ref})")
        ax.set_ylabel(f"per-obs mean log-lik  ({other})")
        max_abs = float(np.max(np.abs(x - y_arr)))
        ax.set_title(f"{ref} vs {other}\nmax |diff| = {max_abs:.4f}")
        ax.legend(loc="upper left", fontsize=9)
    plt.tight_layout()
    plt.show()
else:
    print("Need >=2 backends with log_likelihood for pairwise comparison.")
../_images/4a25b3ea91ec31a44243e44a79a22018772360c1db4071b0fcbaacdb59feed57.png
loo_rows = []
for name, idata in successful.items():
    loo = az.loo(idata)
    loo_rows.append(
        {
            "backend": name,
            "elpd_loo": float(loo.elpd_loo),
            "se": float(loo.se),
            "p_loo": float(loo.p_loo),
        }
    )
loo_df = pd.DataFrame(loo_rows).round(3)
loo_df
backend elpd_loo se p_loo
0 numpyro -278.175 12.005 4.499
1 numba -278.150 11.969 4.460
2 c -278.150 11.969 4.460
if len(successful) >= 2:
    cmp = az.compare(successful, ic="loo")
    display(cmp)
rank elpd_loo p_loo elpd_diff weight se dse warning scale
numba 0 -278.149779 4.460481 0.000000e+00 0.5 11.969022 0.000000e+00 False log
c 1 -278.149779 4.460481 1.650484e-10 0.5 11.969022 1.041621e-10 False log
numpyro 2 -278.175221 4.498922 2.544176e-02 0.0 12.005298 5.208505e-02 False log

Reading the results

Three things to verify:

  1. Native capture — every available backend reports has_log_likelihood = True. Prior to the SEM CustomDist migration, JAX backends would have either crashed inside pm.sampling.jax._get_log_likelihood or silently produced an empty log-likelihood group.

  2. Posterior parity — lam_hat, sigma_hat, and beta_rmse should be similar across backends. Small differences are expected (independent MCMC chains).

  3. Log-likelihood parity — the pairwise scatter plots should hug the y=x line, and az.compare should report ELPD differences (dse) on the order of the within-backend SE — i.e. backends are statistically indistinguishable from each other.

The convention in the SEM CustomDist.logp is to distribute the spatial Jacobian log|I - λW| evenly across observations as log|I - λW| / n. The sum across observations equals the joint log-density; the per-point split is a bookkeeping convention shared with the manual NumPy fallback used on the C/Numba backend so that az.loo and az.waic numbers match across backends.
